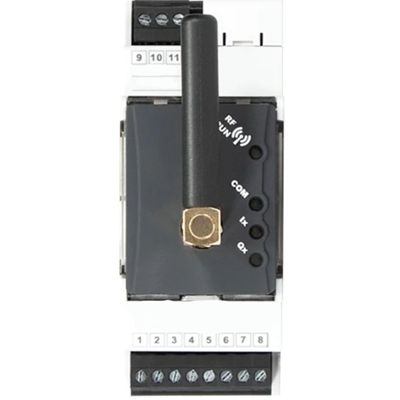

Pixsys CNV580-LTE-2AD - IIoT modem for data monitoring with RS485
Description
Advanced IoT gateway designed for remote monitoring of industrial devices. It supports LTE/4G+ connectivity and integrates an RS485 port with Modbus protocol, allowing communication with a wide range of devices.
It has 2 isolated digital inputs, 1 4-20mA analog input for sensor monitoring and 1 PNP digital output for actuator control.
Configuration and monitoring can be managed via the PixsysGuard app, available for Android and iOS devices.
Datasheet
• Model: Pixsys CNV580-LTE-2AD
• IoT gateway type LTE/4G+
• Connectivity: LTE/4G+, RS485 with Modbus protocol
• 2 isolated PNP digital inputs (2.5 kV isolation)
• Analog input 1 x 4-20mA (2 wire, 40000 counts, ±0.2% FS)
• Digital output 1 PNP 24 VDC, 30 mA max
• Power supply: 10-30 VDC
• Power consumption < 3W
• Operating temperature -20°C ÷ 60°C
• Dimensions 100 x 60 x 110 mm
• Weight 250 g
Package Contents:
• Pixsys CNV580-LTE-2AD gateway
• LTE Antenna
• Connectors for power and communications
• User manual
