Description

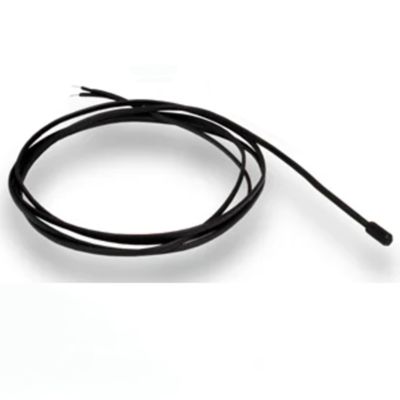

The Pixsys PTS-N1-C6X15-Z02 is a 10K NTC (β3435) temperature probe designed for applications in refrigeration and HVAC systems. Featuring a thermoplastic PVC sheath with an external diameter of 6 mm and a length of 15 mm, it offers a fast response time of 10 seconds in liquids with a velocity of 2 m/s. The 1.5 m PVC cable ensures flexibility in installation. The probe complies with BS 1904/1984/CEI60751 standards, ensuring reliability and accuracy in measurements.
Datasheet
• Pixsys Model PTS-N1-C6X15-Z02
• Probe type NTC 10K (β3435)
• PVC cable, length 1.5 m, external diameter 6 mm
• Response time 10 seconds in liquids with velocity of 2 m/s
• Operating temperature range -50°C / +120°C
• Immersed material AISI 304 steel
• Sensor insulation MgO Magnesium Oxide >20Mohm @ 25°C (500Vdc)
• Complies with BS 1904/1984/CEI60751 standards
Package Contents:
• Pixsys PTS-N1-C6X15-Z02 temperature probe
