Description

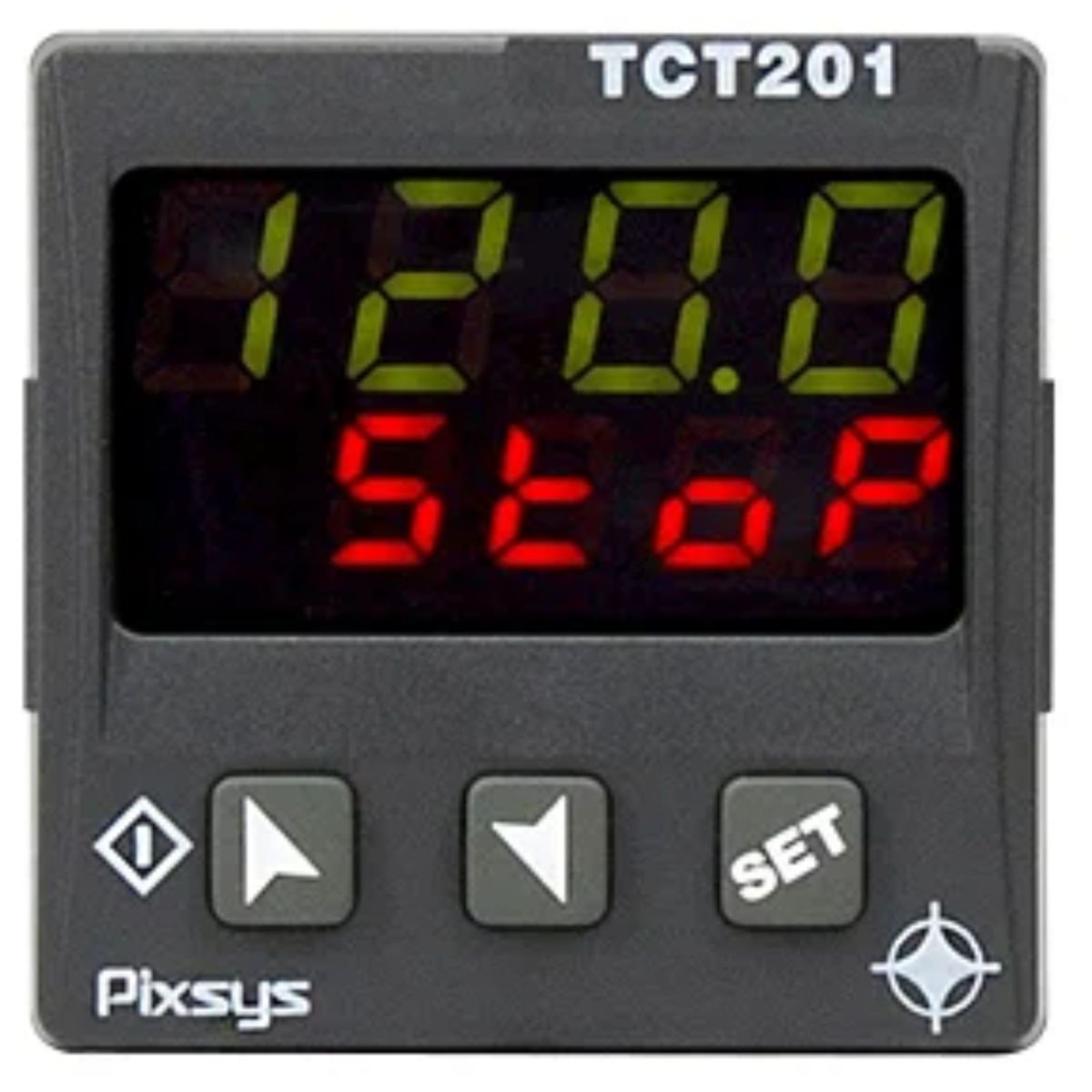

Versatile process counter, designed to handle various counting functions, including totalization, batch counting and preset counting. Equipped with a 4-digit display on two lines, it offers clear data visualization, making it easy to monitor and control processes.
This device supports universal digital inputs (NPN/PNP/TTL) and can be configured to operate in single or dual mode, with independent settings. It also has an analog input for changing the set point via an external 5/10 kOhm potentiometer, allowing precise adjustment of the operating parameters.

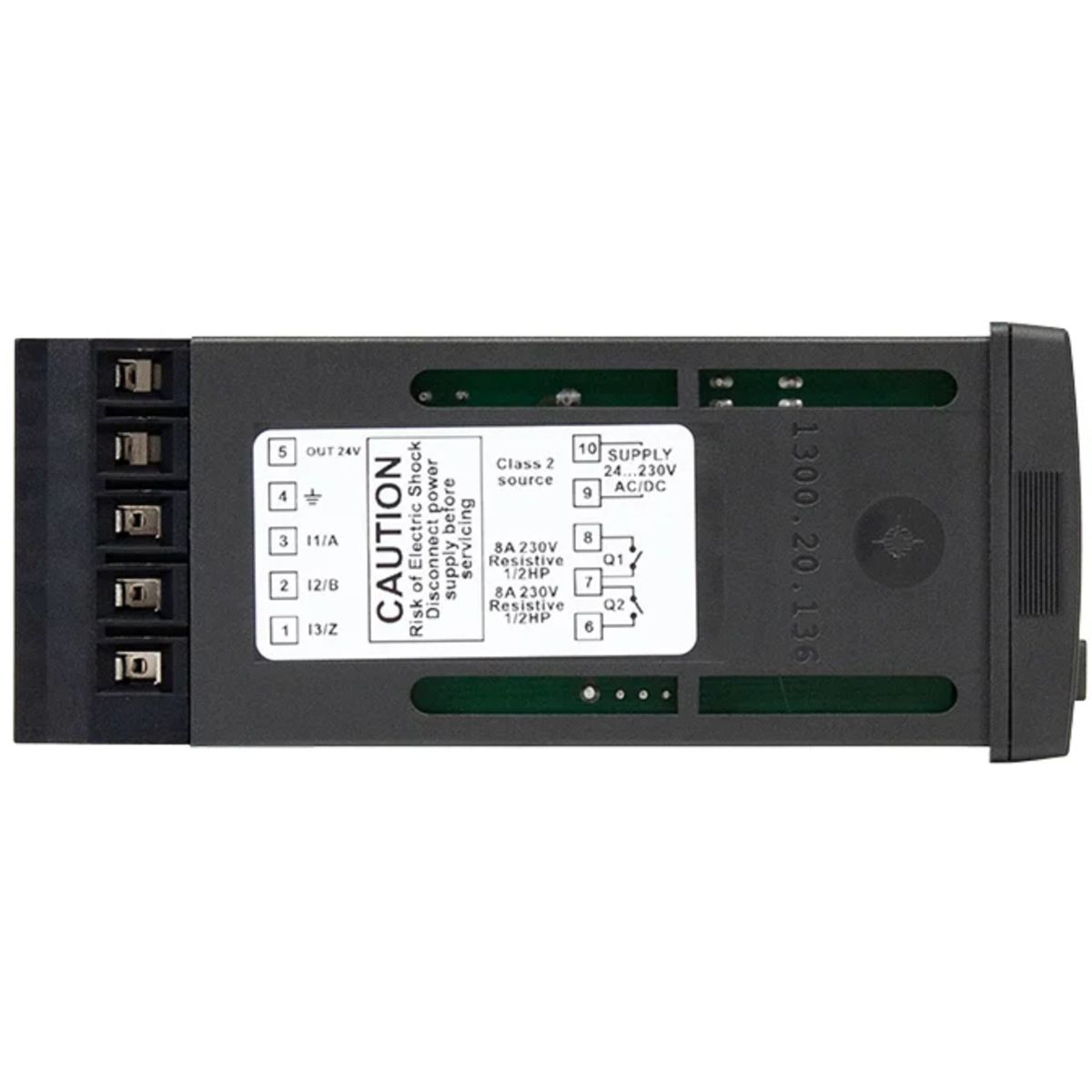

The TCT201-2ABC is equipped with two 8A relay outputs, allowing robust control of external devices. Programming can be done via the integrated keypad or using LabSoftView software; Memory Cards are available for quick duplication of settings on multiple devices.
With a compact structure (48x48x107 mm) and a self-extinguishing UL94V0 polycarbonate front, the TCT201-2ABC guarantees durability and safety.
Datasheet
• Product code TCT201-2ABC
• Pixsys Builder
• Programmable process counter type
• Dimensions 48 x 48 x 107 cm
• Front material: UL94V0 polycarbonate
• Display 4 digits 0.4 green plus 4 digits 0.3 red
• 3 digital inputs selectable as NPN PNP TTL
• Analog input 1 for potentiometer 5 10 kOhm
• 2 x 8A 250VAC relay outputs for resistive loads
• Power supply 24..230 V AC DC ±15% 50 60 Hz
• Consumption 3 Watt VA
• Operating temperature 0 45 °C
• Operating Humidity 35 95% RH non-condensing
• CE UL certifications
Package Contents:
• Pixsys TCT201-2ABC process counter
• User manual
