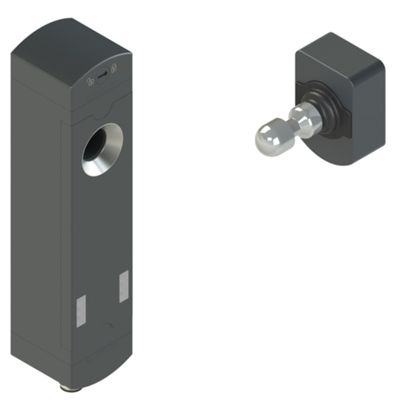

Product photos are indicative only
Description
NS series safety switch with lock complete with actuator with technopolymer case and type D operating principle with actuator locked with de-energized electromagnet.
OS safety outputs are active with protection blocked.
Equipped with 2 safe inputs IS1-IS2 and 2 safe outputs OS1-OS2, 1 actuator inserted signalling output O3, 1 actuator blocked signalling output O4, 2 electromagnet activation inputs IE1-IE2, 1 programming/reset input I3.
The release is via a front screwdriver, the output direction of the connections is via a cable or connector at the bottom.
It is complete with high level coding actuator VN NS-F41.
The connection is made via a 12-pin M12 connector.
Protection class IP67 and IP69K.
Datasheet
• Degree of protection IP67 according to EN 60529 and IP69K according to ISO 20653.
