Description

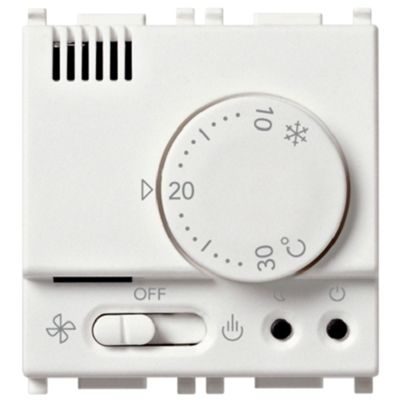

Electronic thermostat for room temperature control (heating and air conditioning), summer/off/winter switch, input for remote activation of the energy saving function, changeover relay output 6(2) A 230 V~, power supply 120-230 V~ 50-60 Hz, white - 2 modules.
The thermostat allows you to turn on and off all types of electrically powered appliances, such as circulation pumps, burners or motor-driven mixing valves.
The use of the thermostat is recommended in domestic rooms.
It must be installed at a height of approximately 1.5 meters from the walking surface in a position suitable for correctly detecting the room temperature, avoiding installation in niches, behind doors and curtains or areas influenced by heat sources or atmospheric factors; in particular, installation on perimeter walls or in association with heat-generating devices (e.g. regulators or lamps) must be avoided.
Datasheet
| Producer | Vimar |
| Series | Plana |
| V voltage | 230 |
| Forms no | 2 |
| Certification | THERE IS |
