Description
Street pole top designed according to three imperatives: energy saving, achieved thanks to light "only where needed"; visual comfort, guaranteed by reduced levels of glare/intrusive light and versatility, thanks to lighting solutions that allow adaptability to the different needs of existing systems. The excellent light distribution used translates into a sustainable and effective lighting system.
LYRA+ complies with the latest national and international directives in force on light pollution, understood as any irradiation of light directed outside the areas to which it is functionally dedicated, and in particular towards the celestial vault.

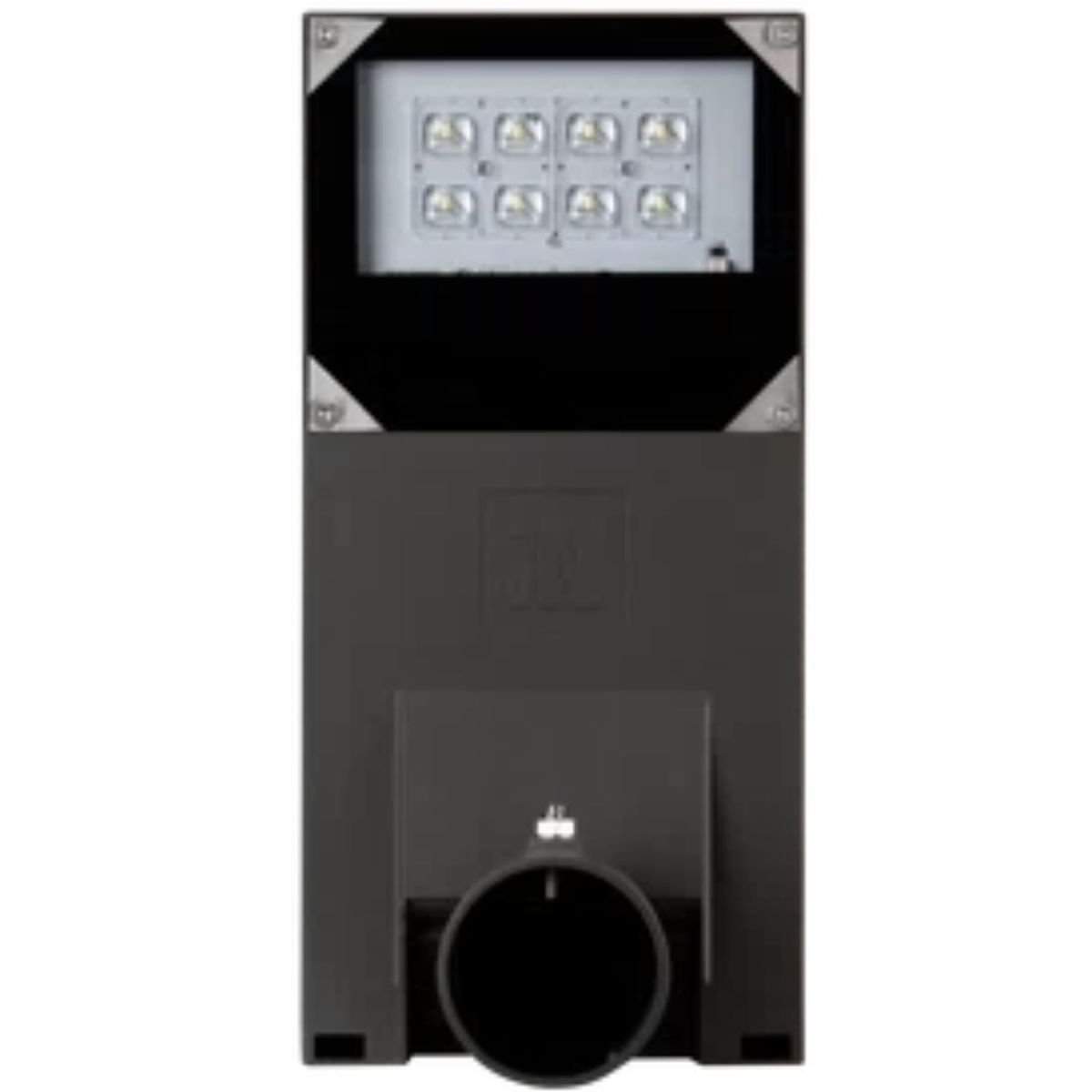

LED street lamp made of die-cast aluminium body and cover painted with polyester powder following surface chemical conversion treatment ISO 9227/12944 - ISO 9223 (C5).
Pole attachment in die-cast aluminium painted with polyester powders after surface chemical conversion treatment for 60 mm diameter poles.
Optical group consisting of technopolymer lenses with high light transmittance, anti-aging silicone gasket with high elastic return capacity and diffuser in extra-clear flat tempered safety glass, glass closing claws in stainless steel.
Device complete with power supply, additional protection device against mains overvoltages up to 10 kV, stainless steel closing screws, 1 m of H07RN-F 2x1.5 mmq cable.
Datasheet
• Luminous efficiency 144lm/W
• CRI 70
• Embossed metallic anthracite finish color
• IK06 impact protection
• Color temperature 4000K
• IP66 protection rating
• Protection class II
• Net weight 4.4Kg
• Glass Diffuser
• SR road optics
• Body material aluminum
• Power supply voltage 220/240V
• Ambient temperature -40, +55 °C
