Description

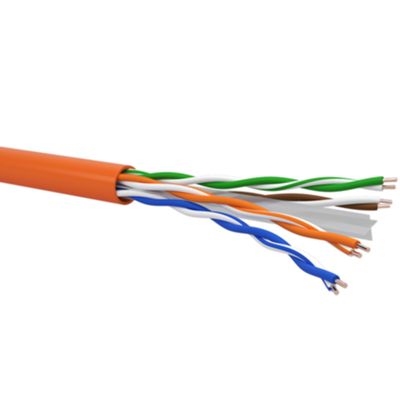

Category 6 U/UTP network cable, designed to ensure high performance in cabling applications, consisting of 4 pairs of AWG 23/1 (0.55 mm) red copper conductors with solid polyethylene insulation, provides a solid foundation for efficient data transmissions.
The PE cross separator facilitates the separation of pairs, improving overall performance.
The external sheath in LSZH (Low Smoke Zero Halogen) in orange RAL 2003 colour is flame retardant, making the cable suitable for internal installations where low emission of toxic fumes in the event of fire is required.
Tested up to 500 MHz, the cable is suitable for the creation of Class E transmission channels, supporting applications such as 1 Gbps Ethernet according to the IEEE 802.3ab protocol and PoE/PoE+/PoE++.
Datasheet
• Conductor material/diameter red copper/AWG 23/1 (0.55 mm)
• Insulation material/diameter solid polyethylene, maximum diameter 0.98 mm
• External cable diameter 6.6 mm
• Cable weight 39 kg/Km
• Intended use for internal installations
• Operating temperature from -10°C to +60°C
