Description

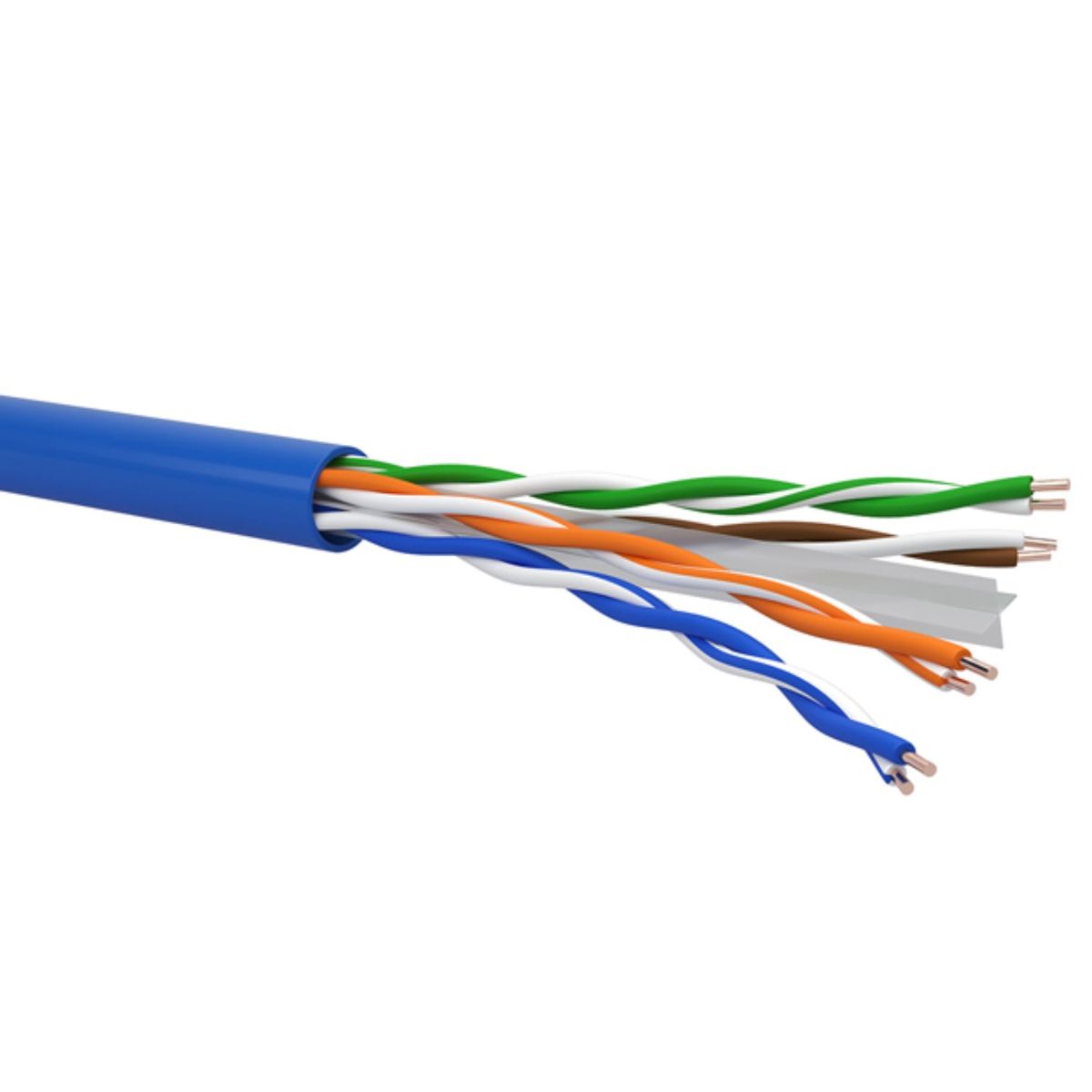

Category 6 U/UTP network cable, unshielded, consisting of 4 pairs of AWG 24/1 (0.53 mm) red copper conductors with solid polyethylene insulation.
The external sheath in LSZH (Low Smoke Zero Halogen) in blue RAL 5015 is flame retardant, making it ideal for internal installations where low emission of toxic fumes in the event of fire is required.

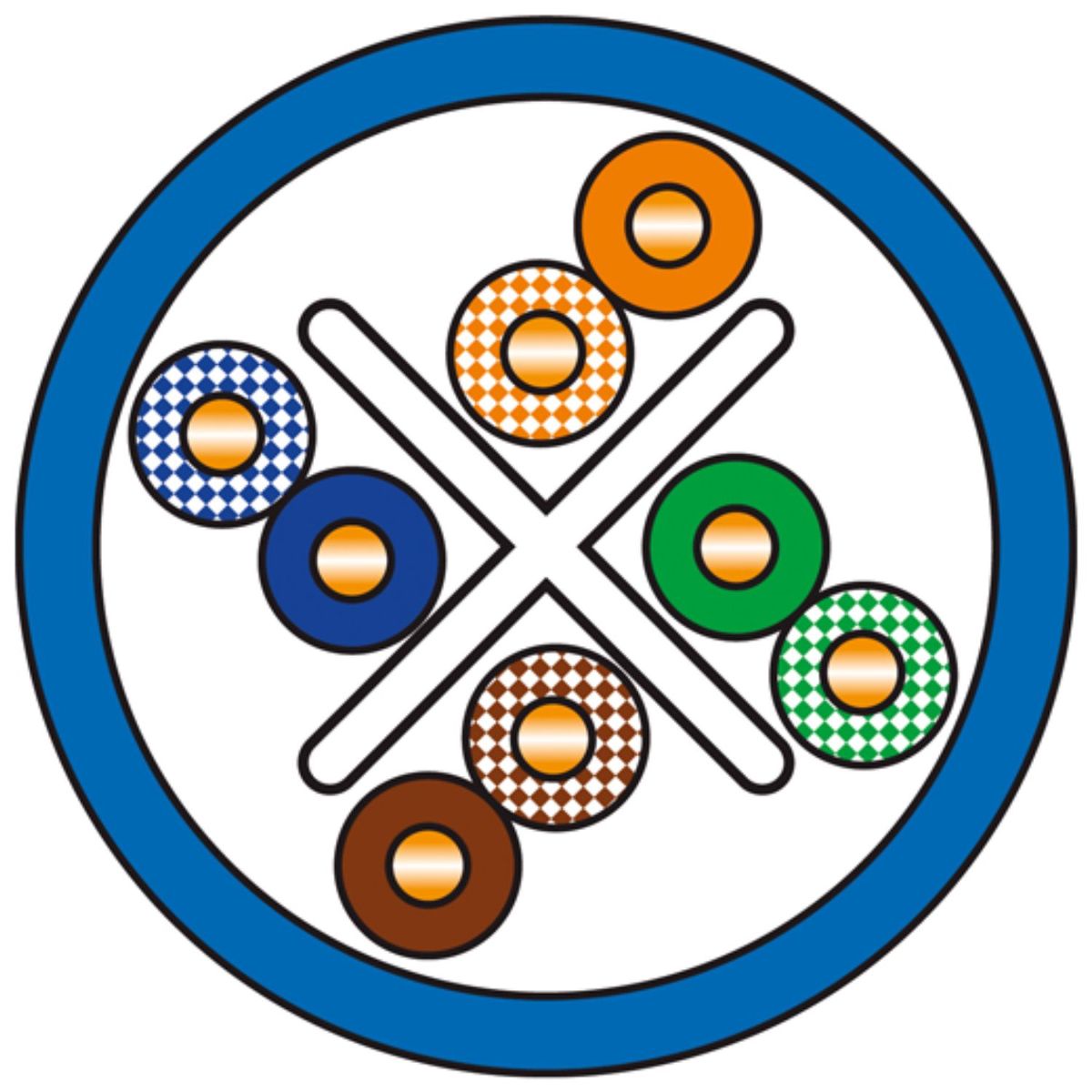

The cable is equipped with a PE cross separator which facilitates the separation of the pairs and ensures optimal performance.
Tested up to 250 MHz, it is suitable for the creation of Class E transmission channels, supporting applications such as 1 Gbps Ethernet according to the IEEE 802.3ab protocol and PoE/PoE+/PoE++.
Datasheet
• Conductor material/diameter red copper/AWG 24/1 (0.53 mm)
• Insulation material/diameter solid polyethylene, maximum diameter 0.96 mm
• External cable diameter 6.1 mm
• Lead-free
• Cable weight 40 kg/Km
• Intended use for internal installations
• Operating temperature from -10°C to +60°C.
