Description

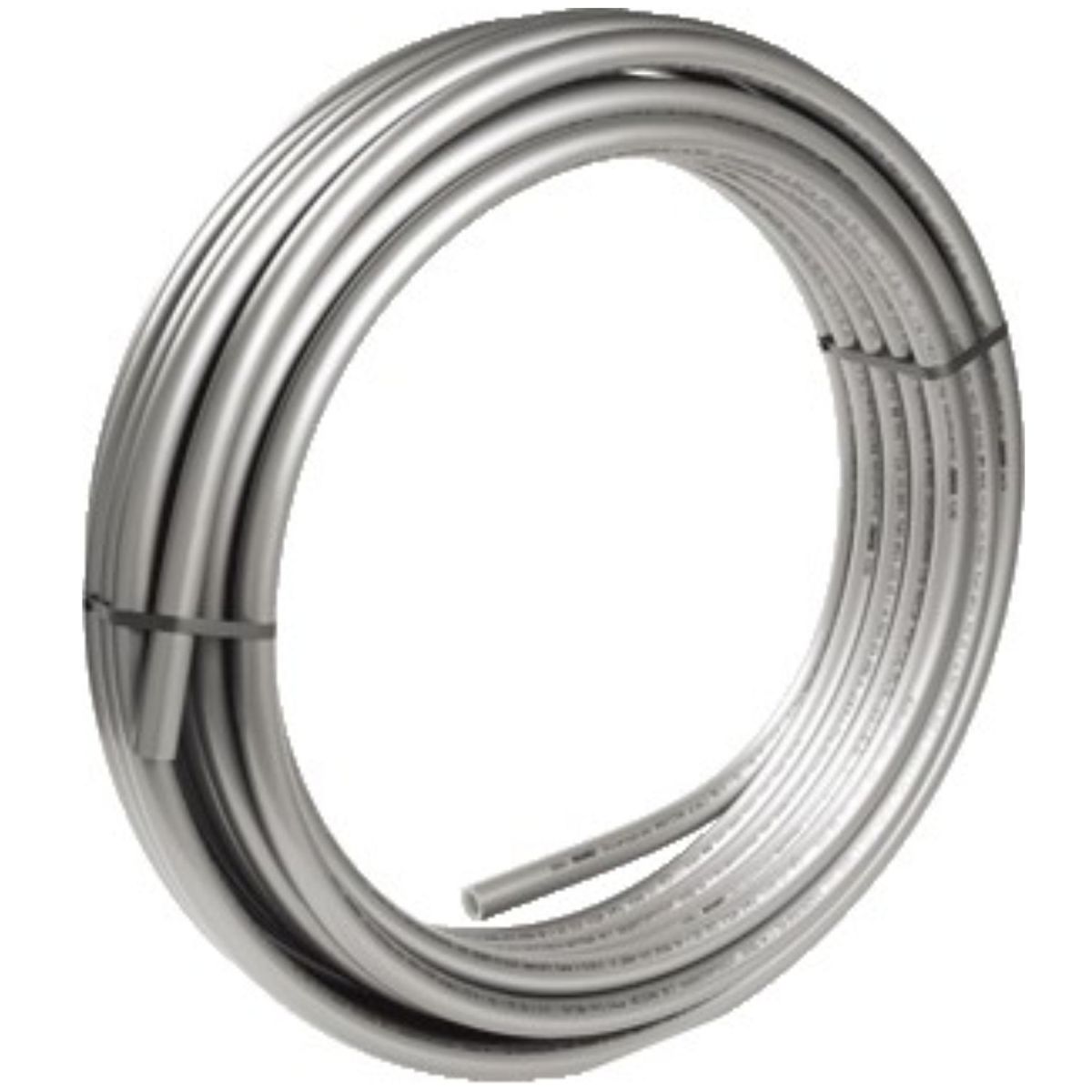

Universal pipe RAUTITAN stabil pre-insulated multilayer metal-polymer (PE-Xa/AL/PE) designed for applications in both sanitary and heating systems.
With an external diameter of 20 mm and a thickness of 2.9 mm, the pipe is pre-insulated with a 6 mm thick polyethylene (PE) sheath, compliant with current regulations, which offers a thermal conductivity of 0.040 W/(m K).
The sheath is tear- and trampling-resistant thanks to a co-extruded sheet, and is coloured in silver (RAL 9006) and is supplied in 50-metre rolls.
Datasheet
• External diameter of the tube 20 mm
• Tube wall thickness 2.9 mm
• Multilayer metal-polymer material (PE-Xa/AL/PE)
• Roll length 50 m
• Insulation thickness 6 mm
• Thermal conductivity of insulation 0.040 W/(m·K)
• Insulation color silver (RAL 9006)
• Application in sanitary and heating systems
