Description

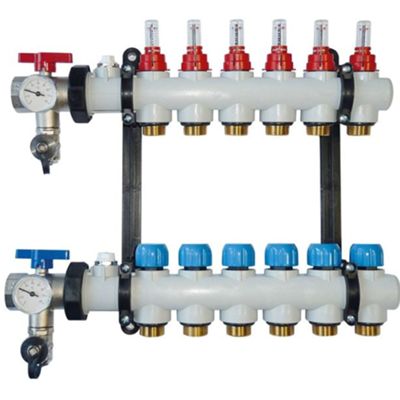

Monobloc polymer collector P HKV-D 1 inch made of technopolymer suitable for heating and cooling.
The temperature range is 4 ÷ 70 °C and the maximum operating pressure is + 6 bar.
The polymer manifold is composed of a flow manifold with flow meters from 0 to 5 I/min and built-in flow regulation valves, a return manifold with built-in shut-off valves designed for electrothermal control, ball shut-off valves including thermostat and adjustable loading/unloading tap, adjustable vent valves and 95 mm fixing brackets to the box or wall (included).
3/4" Euroconus type external thread.
Mechanical fittings for fixing pipes not included.
Datasheet
• 95mm fixing brackets (included)
• Distance between main connections 210 mm
• Dimensions 67x38x7 cm
• Main connections 1"
• 3/4" derivations
• 3/4" Euroconus type external thread
• Compatible with screw-on ring fittings 10.1x1.1 - 14x1.5 - 16x1.5 - 16x2 - 17x2 - 20x2
