Description

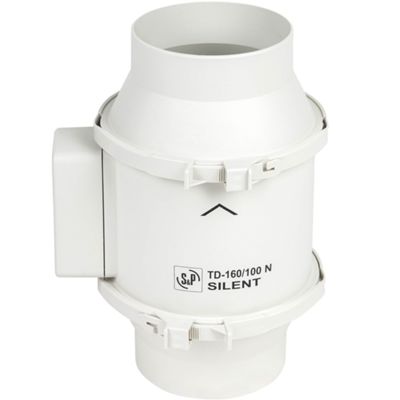

The Soler & Palau 5211318000 is a compact axial-centrifugal fan (TD-Silent series), ideal for residential or tertiary ventilation systems that require silence and efficiency.
The engine is mounted on floating silent blocks, drastically reducing vibrations and noise.
The casing is made of durable plastic with rubber seals at the air inlet and outlet to minimize leaks.
The motor can be removed without disconnecting the duct, facilitating maintenance. The IP44 protection rating protects against dust and splashes. The electrical terminal can be rotated 360°.
Datasheet
• Model TD-160/100 N Silent
• Duct diameter 100 mm
• Speed 2 speeds (approx. 180 m³/h and 130 m³/h)
• Flow/pressure 180 m³/h (0 Pa) – 130 m³/h (20–40 Pa)
• Noise level 24 dB(A) at 3 m
• Power supply 230 V ~ / 50 Hz
• Power approximately 20–25 W
• Floating motor, class B, thermal protection
• IP44 protection rating
• Class II insulation
• Application temperature -20 °C to +40 °C
• Removable motor without removing the pipes, sound insulation, resistant plastic case
