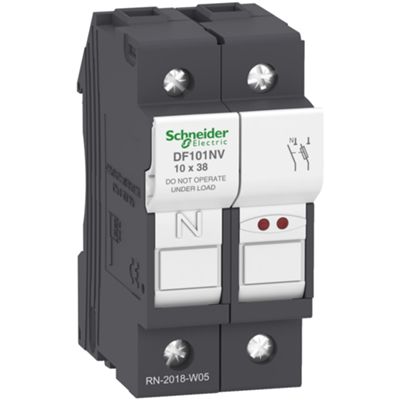

1P+N, 32A 690V TeSys DF series switch fuse holder
Description
The DF101NV item from Schneider Electric is a 1P+N fuse holder designed for 10x38mm cylindrical fuses with a nominal current of 32A and a maximum voltage of 690V AC/DC.
This device is compatible with gG or aM type fuses and mounts on 35mm DIN rail, it is ideal for protecting low voltage circuits against short circuits.
It is equipped with screw terminals for rigid or flexible conductors (from 1 to 16 mm²), with a recommended tightening torque of 2.2 Nm and is also designed to withstand an operating temperature of -40°C to +70°C, making it suitable even for harsh environmental conditions.
Datasheet
• Fuse size 10x38 mm
• Number of Poles 1P+N
Properties
Cerifications:
