Arno Canali B352 - 35 mm2 BOXline-Multi clamp
Made in Italy








Description

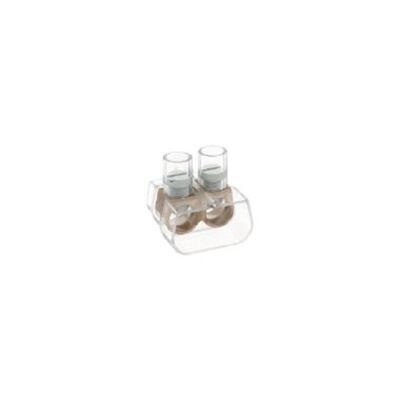

Single-pole multi-hole terminal block with a section of 35 mm2, with galvanized steel screws, brass insert and transparent polycarbonate shell. This slat clamp has a patented pole detachment system, which leaves no side residue. Combinations of conductors with the same or smaller section can be connected as long as the total section does not exceed double the nominal section. Example: 2x35 - 3x25 - 4x16.
Datasheet
Technical specifications:
• Nominal section 35 sq.mm
• Rated voltage 500 V
• Rated current 125 A
• IP 00 protection rating
