Description

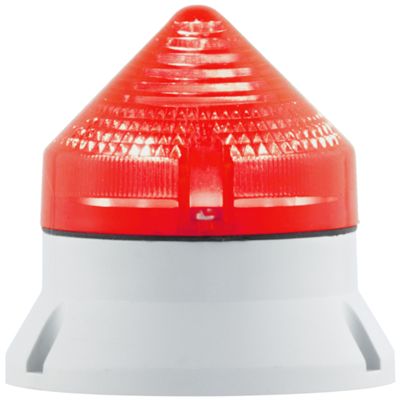

The CTL 600 STEADY/FLASHING light device in the red dome variant is designed for industrial applications on board machines with a diameter of 60 mm, offering effective visual signalling thanks to the possibility of operating in both fixed and flashing light mode.
This model is compatible with operating voltages of 12/48V DC , ensuring versatility in installation on different equipment.
The structure of the device features a self-extinguishing ABS base, which ensures robustness and fire resistance, while the dome is made of red polycarbonate, a material known for its durability and transparency, effectively protecting the internal light source.
As for the optical characteristics, the CTL 600 STEADY/FLASHING uses a 5W incandescent lamp with a Ba15d socket , offering an intense and highly visible light.
The flashing frequency is 110±20 flashes per minute, ensuring clear and easily perceptible signaling even in noisy or poorly visible environments.
In summary, the CTL 600 STEADY/FLASHING with red dome represents a reliable and versatile solution for light signalling needs in industrial contexts, combining high quality materials with effective light performance.
Datasheet
• Voltage 12-48V
• IP65 protection rating
• Operating temperature from -30°C to +50°C
• DC current
• Red dome color
• Self-extinguishing
• Lamp socket type Ba15d
