Description

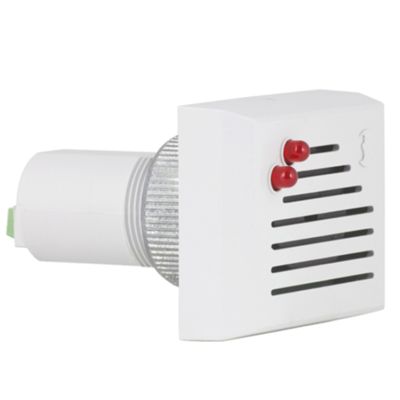

The BIP 84 built-in buzzer is designed for applications on electrical panels and cabinets.
It operates at a voltage of 24V AC/DC ±10% and has a maximum consumption of 6 mA .
Equipped with a piezoelectric acoustic capsule, it emits an intermittent sound with a frequency between 2200 and 3500 Hz and a maximum sound level of 80 dB at 1 meter away .
It also features two LED indicators for increased visibility.
The structure is made of self-extinguishing polycarbonate with an aluminium fixing ring, guaranteeing robustness and durability.
With an IP30 protection rating , it is suitable for indoor environments.
Installation takes place via a fixing ring on round holes with a diameter of 30 mm.
The device is designed for continuous operation in a temperature range of -30°C to +50°C.
Datasheet
• Degree of protection IP30
• Operating temperature from -30°C to +50°C
• Voltage 24V
• AC/DC current
• Maximum current consumption 6.0 mA
• 80 dB maximum
• 1 tone
• Self-extinguishing polycarbonate body and aluminium ring
• Back panel installation for round hole (Ø 30 mm) via ring nut
