Description

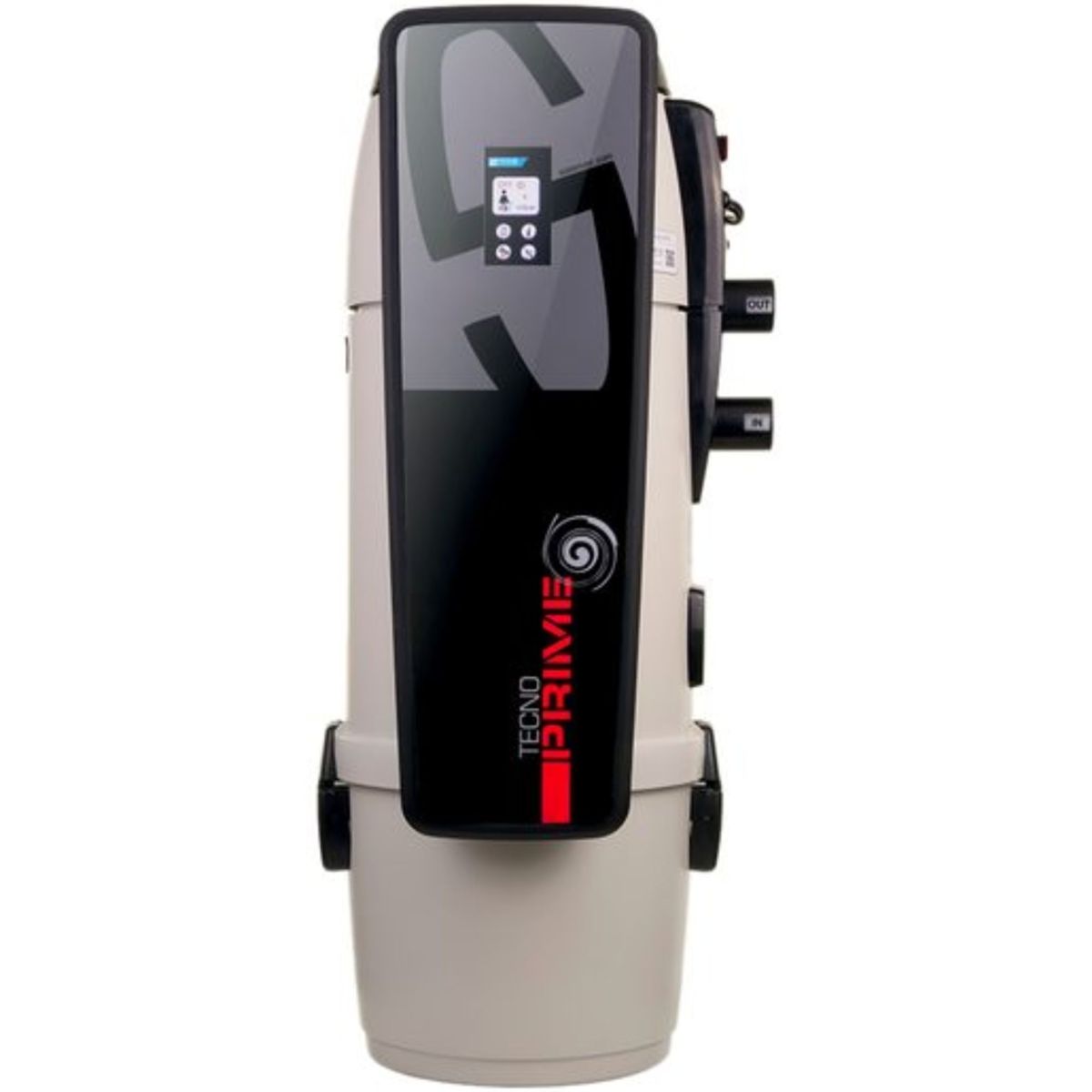

Centralized suction system equipped with a high-efficiency motor, characterized by:
- Structure made of impact-resistant plastic material
- Touchscreen control panel for customized maintenance management
- Cloud connection function to monitor and manage maintenance remotely
- BiVac technology, which allows you to choose between: cyclonic dust separation (21-litre container) and filtration with a high-efficiency microfibre bag (18-litre capacity).
- Innovative dirt filtering system with conical shaped cartridge, made of polyester and washable aluminium fibre, equipped with a mechanism that disperses electrostatic charges to reduce dust accumulation
- Vacuum breaker valve and Soft Start system to protect the engine
- Advanced control system with dedicated software to customize maintenance operations
- Intelligent sensor that warns you of the need to clean the filter only when actually necessary
- Pipe connection options on both sides (right and left)
- Electronic board with integrated protection, equipped with double insulation transformer
- Thermal safety device to protect the system from overheating
- Suction socket integrated directly into the machine body, usable in cyclonic separation mode
- Silencer for venting air to the outside
- Wall fixing support and flexible joints for connection to the pipe network
- Degree of protection IP 44.
This device represents a complete and versatile solution for centralized vacuuming.
Datasheet
• 7 recommended vacuum sockets
• 250 m² maximum surface to be cleaned
• 1 operator
• Micro dust vent
• Computer for maintenance
• Air Cloud
• On-board suction socket
• 50mm intake/exhaust connection
• Degree of protection IP44
• Power supply 220/240 V ac
• Frequency 50/60 Hz
• Engine power 1.35 kW
• Absorption 5.6 A
• Power supply 12 V dc sockets
• Maximum air flow 234 m³/h
• Maximum depression 272 mbar
• Filtration class M
• Filtering surface 6700 cm²
• Dust container capacity 21 l
• Filter bag capacity 18 l
• 50mm air exhaust silencer
• Weight 17 kg
