TCI - 137962/242 - ballast for fluorescent lamps 1/2x22/70W MBQ 242/2
Description

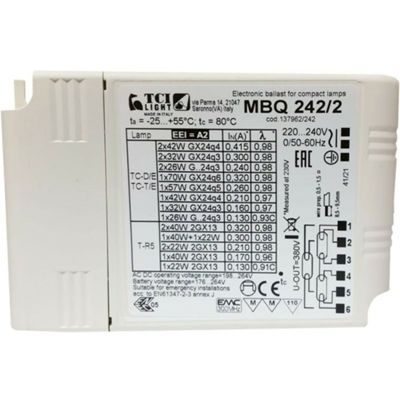

The TCI MBQ 242/2 multi-lamp electronic ballast (code 137962/242) is designed to power compact fluorescent lamps with power ratings between 26 and 70 W. Equipped with preheat ignition, it ensures long lamp life and stable operation even in professional environments.
Ideal for fluorescent lamps 1/2x26 1/2x26-32 1/2x42 1x57 1x70 1x22+1x40 1/2x22-40
model TC-D/E TC-T/E TC-T/E TC-T/E TC-T/E T-R5 T-R5 with connection G24q-3 GX24q-3 GX24q-4 GX24q-5 GX24q-6 2GX13 2GX13
Made with high-quality materials and integrated protection against overvoltages, defective lamps and end-of-life, it offers energy efficiency (EEI A2 class) and easy installation thanks to the quick-connect terminals and compact IP20 plastic body.
Datasheet
• Model 137962/242 (MBQ 242/2)
• Multi-lamp electronic ballast type
• Power supply 220–240 V AC 50 Hz
• Supported lamp power 26–70 W
• Number of lamps 1 or 2 (22–42 W each)
• Ignition with preheating
• Energy efficiency class EEI A2
• Overvoltage protection, faulty lamp, end of life EOL T.2
• Degree of protection IP20
• Wall or ceiling mounting with slotted holes
• Quick connection terminals (0.5–1.5 mm²)
• Durable white plastic casing
• Dimensions 123.5 × 79 × 22 mm, weight ~300 g
Package Contents:
• 1 TCI MBQ 242/2 electronic ballast (code 137962/242)
