Description

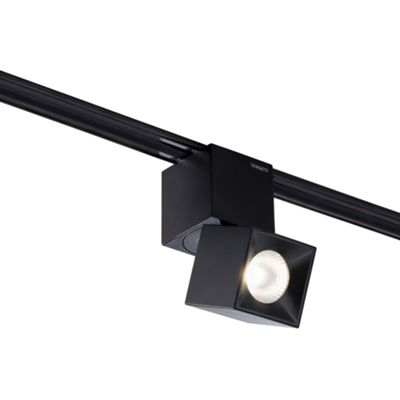

Single spotlight from the OZ series, designed for 48 V magnetic track systems, with compact dimensions of 50x50 mm, this adjustable luminaire allows a rotation of 358° on the horizontal axis and a tilt of 0° to +90° on the vertical axis, offering maximum flexibility in the orientation of the light beam.
It is equipped with a high-efficiency Chip on Board LED with a colour rendering index of Ra90, emitting a luminous flux of 762 lm at 3500 K, ensuring natural and uniform colour rendering.
The Flood (FL) optic is composed of a metallized polycarbonate reflector, holographic diffusing filter and black polycarbonate mask, ensuring a homogeneous and comfortable light distribution, compliant with UGR <19 standards for working environments.
The deep black painted die-cast aluminum body gives robustness and a refined aesthetic.
The magnetic attachment system allows for quick and safe installation on the track, making any changes or repositioning easier.
Datasheet
• Dimensions 50x50 mm
• Adjustable version (0°/+90° vertical, 358° horizontal)
• Body material: die-cast aluminum painted deep black
• High efficiency Chip on Board LED light source
• Rated power 6.5W
• Nominal luminous flux 1019 lm
• Color temperature 3500 K
• Colour Rendering Index (CRI) Ra90
• Optical efficiency 75%
• Power supply 48 V DC
• Insulation class class III
• Class F Yes
• Degree of protection IP20
• Operating ambient temperature 0°C / +25°C
• Magnetic fixing system on Power Track 48V track
• Duration (L80/B10) 50,000 h at 25°C
