Description

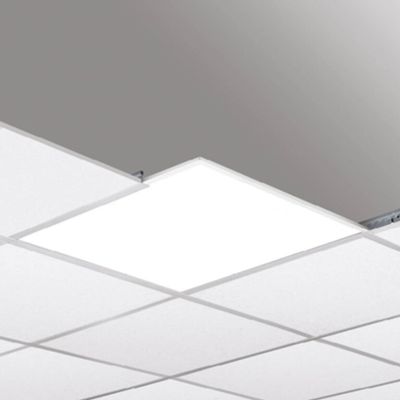

Recessed panel from the QUADRA/Q3 series, designed for lighting interior environments, it is a multi-installation LED BACKLIGHT device, which can be installed recessed in false ceilings with a 15/24 mm exposed load-bearing structure or on the ceiling using a specific accessory.
The body is made of sheet steel, painted with white epoxy-polyester powders, anti-yellowing with a fine embossed finish, and pre-treated with phosphating and degreasing.
It is equipped with a 220-240V 50/60Hz electronic driver and offers a luminous flux of 3667 lm with a power of 32W.
Datasheet
• Power 32W
• Color temperature 4000K (neutral light)
• Luminous flux 3667 lm
• CRI >80
• Power supply 220-240V AC, 50/60Hz
• Body in sheet steel painted with white anti-yellowing epoxy-polyester powders
• Fine embossed finish
• Phosphating and degreasing pre-treatment
• Recessed installation in false ceilings with exposed 15/24 mm load-bearing structure or ceiling-mounted with accessory
• Dimensions: 595 x 595 x 35 mm
• Degree of protection IP20
• Insulation class I
