Description

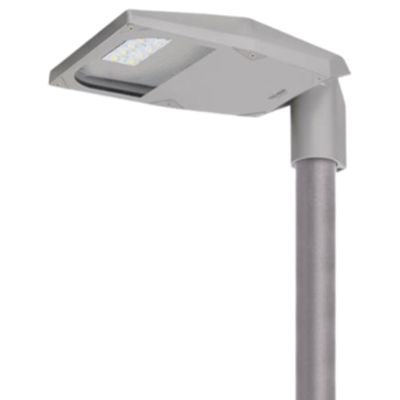

LED luminaire designed for street lighting, equipped with a die-cast aluminium body painted with anti-corrosion polyester thermosetting powder in silver colour, guarantees durability and resistance to atmospheric agents.
The 4mm transparent tempered glass and silicone gasket ensure effective protection against dust and humidity.
The 45° asymmetrical optic in high-performance PMMA complies with the EN13201 Class ME regulation, offering optimal light distribution for road applications.
The integrated electronic driver supports a power supply of 220-240V 50/60Hz and the device is supplied with a pole attachment included in the package.
Datasheet
• Power 75W
• Color temperature 4000K (neutral light)
• Luminous flux 12,026 lm
• Luminous efficiency 160 lm/W
• CRI >70
• 45° asymmetric optics (Type II IESNA) in high-performance PMMA
• Power supply 220-240V AC, 50/60Hz
• Die-cast aluminium body painted with anti-corrosion thermosetting polyester powder
• Silver color
• 4 mm thick transparent tempered glass diffuser
• Silicone gasket
• IP66 protection rating
• IK08 impact resistance
• Insulation class II
• Dimensions (L x W x H) 415 x 245 x 60 mm
• Pole attachment installation included in the package
