Description

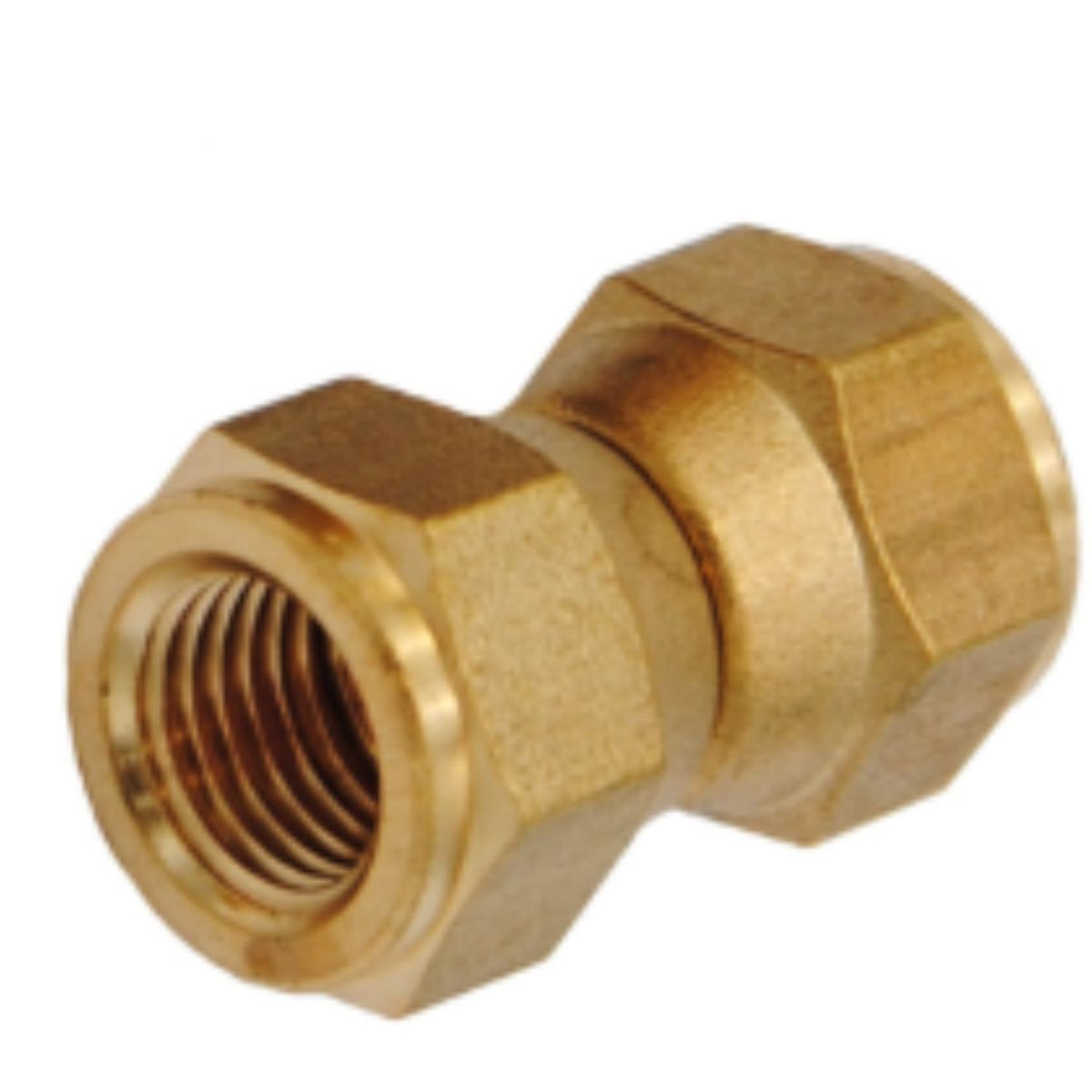

Swivel nozzle for air conditioning systems FF 1/4 SAE, suitable for HCFC, HFC and R744 (CO2) refrigerants. Not suitable for ammonia
CE APPROVED (PED, RoHS, REACH), EAC
Datasheet
• Thread ANSI/ASME B1.1 (female thread) 7/16" - 20 UNF
• Flare connection SAE J513 - 1/4" SAE
• Tightening torque NM (LBF FT) 11 ÷ 14 (8 ÷ 10)
• Maximum recommended pressure 140 BAR
Properties
Cerifications:
