Description

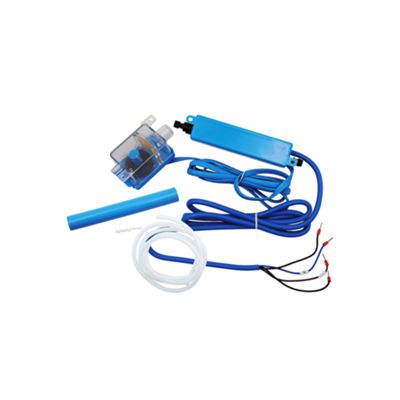

TECNOSLIM condensate drain pump, small, thin and silent, suitable for air conditioners with a maximum cooling power of 16 kW - 54600 Btu/h.
It comes complete with accessories for installation (one missing piece to complete the installation, a few meters of Crystal PVC tube diameter 6x9mm)
Datasheet
• Voltage 230 V 50-60 Hz
• Maximum flow 15 l/h (Discharge length 0 m)
• Maximum thrust height 12 m
• Maximum suction height 2 m
• Maximum split power 16 kW - 54600 Btu/h
• Maximum water temperature 40°C
• Exhaust pipe internal/external diam. 6mm / 9mm
• Noise level 19 dB(A) @ 1 m
• 3A Safety Switch Normally Closed
• IPX5 protection rating
• Thermal insulation class II
