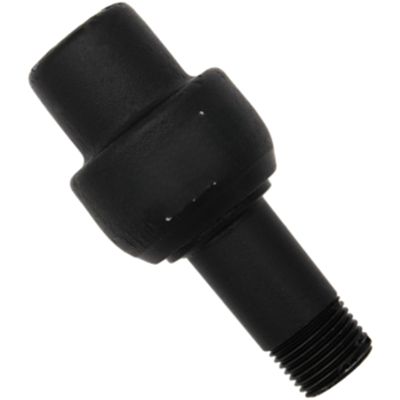

Tecnogas 20000 - dielectric joint M/F 3/4

Tecnogas 20000 - dielectric joint M/F 3/4

SKU: TGS00000020000
Barcode: 8058699033658
Brand: Tecnogas

Dielectric insulating joint M/F 3/4 PN10

Ideal for gas and water systems

€17.16pcs
⏰ Order now and receive it: between and
Based on the shipping address, VAT may change during the purchase process. For more information, click here.

Description

A dielectric insulating joint is designed to ensure electrical separation between the underground and above-ground parts of pipes in low-pressure systems (up to 10 bar) for gas and water to domestic users. This separation protects the pipes from any stray currents that could cause corrosion, thus increasing the safety and efficiency of the system.

BUILT AND TESTED IN ACCORDANCE WITH UNI CIG 10284

Datasheet

• Operating temperature - 15°C ÷ + 70°C

• Insulation resistance in air 10 MOHM

• Air insulation voltage 3.0 KV

• Operating pressure 10 kg/cm2

• API-5L gr.B steel trunk

• ASTM A 105 steel glass

• Polycarbonate insulating rings

• Hytrel 40 D Dupond gasket

Properties

Cerifications:
C E
