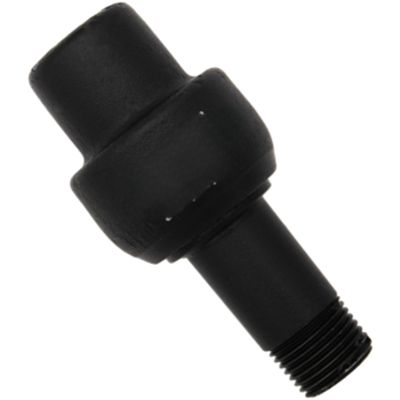

1"1/4 PN10 M/F dielectric insulating joint
Ideal for gas and water systems








Description
A dielectric insulating joint is designed to ensure electrical separation between the underground and above-ground parts of pipes in low-pressure systems (up to 10 bar) for gas and water to domestic users. This separation protects the pipes from any stray currents that could cause corrosion, thus increasing the safety and efficiency of the system.
BUILT AND TESTED IN ACCORDANCE WITH UNI CIG 10284
Datasheet
• Operating temperature - 15°C ÷ + 70°C
• Insulation resistance in air 10 MOHM
• Air insulation voltage 3.0 KV
• Operating pressure 10 kg/cm2
• API-5L gr.B steel trunk
• ASTM A 105 steel glass
• Polycarbonate insulating rings
• Hytrel 40 D Dupond gasket
