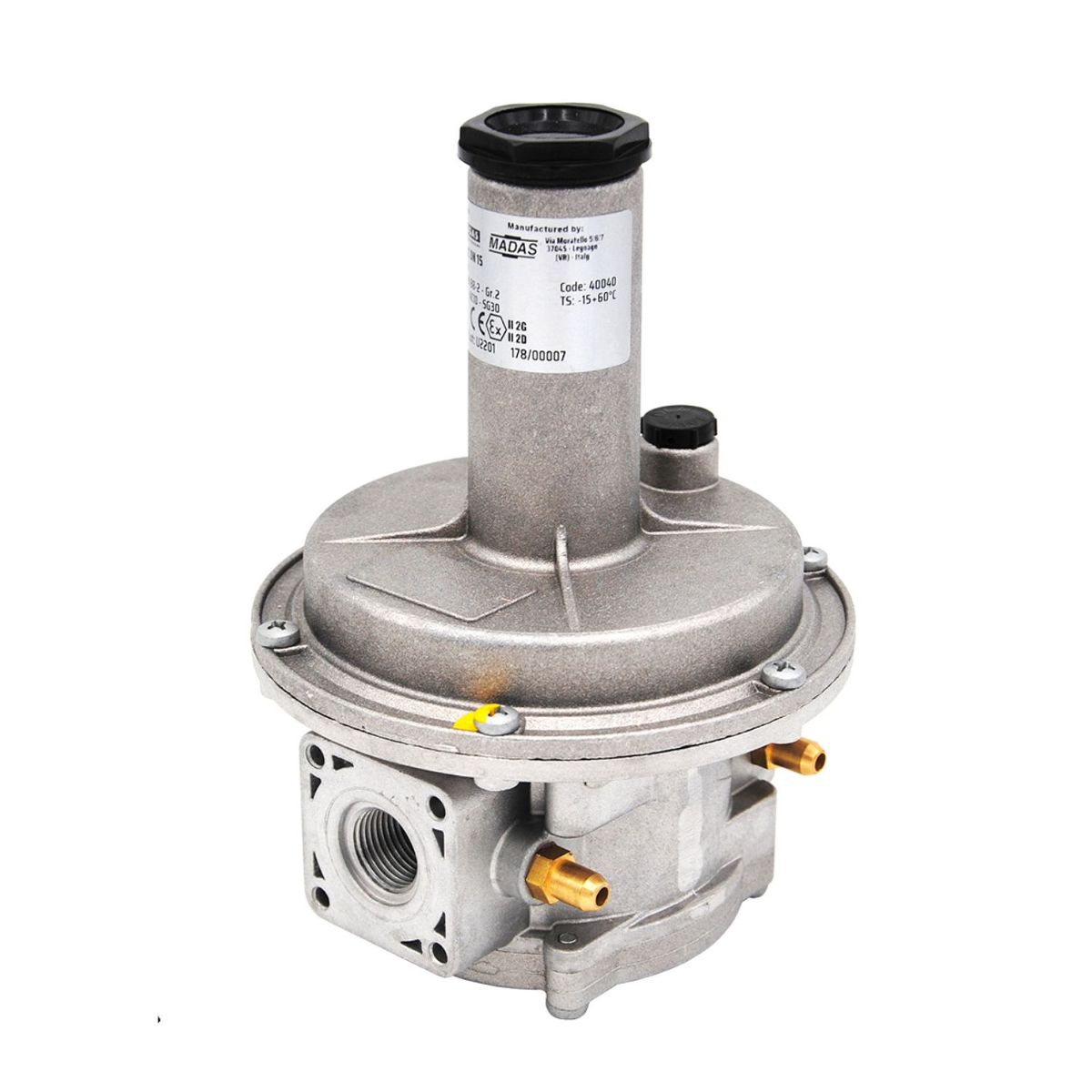

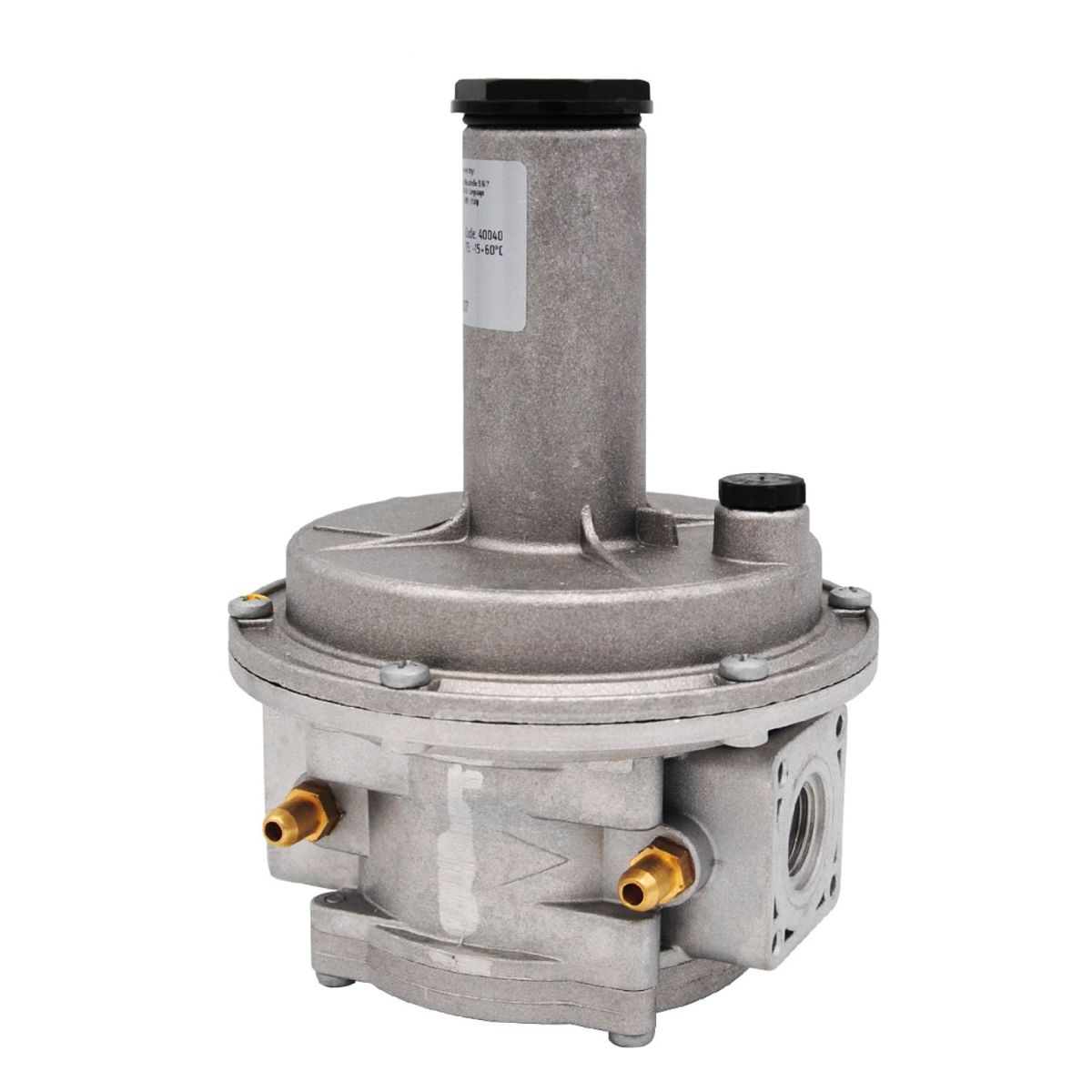

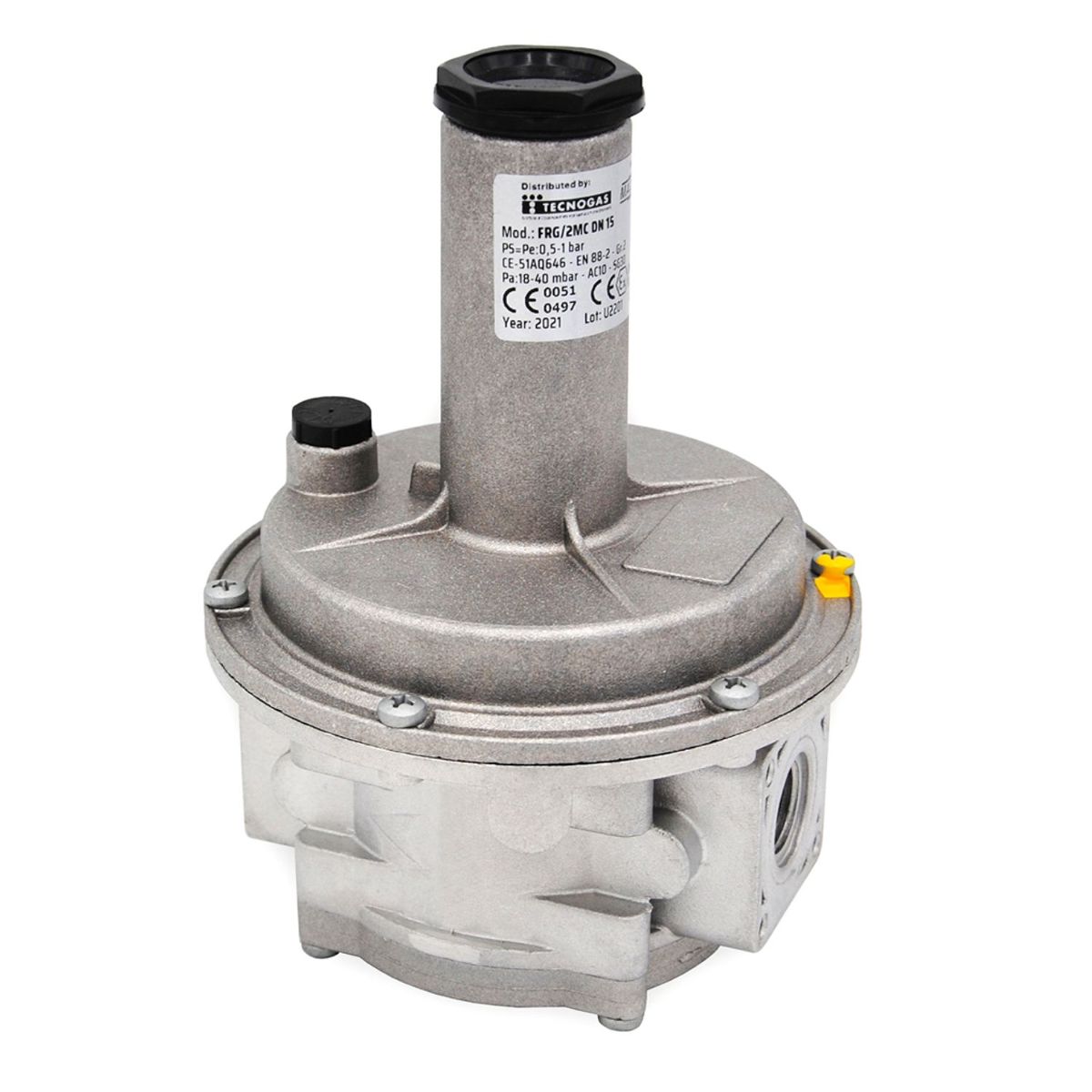

Regulator model FRG/2MC, max inlet pressure 1 bar, threaded connections FF 2"
Description
The FRG/2MC pressure regulator equipped with a double membrane with filter closure, a spring for pressure regulation and a pressure socket (inlet and outlet) delivers a predefined and constant pressure value "downstream", as the inlet pressure and/or flow rate vary.
Datasheet
• Non-aggressive gas types of the three families (manufactured / natural / LPG)
• Inlet pressure range 0.5 ÷ 1 bar
• Output pressure range 13 ÷ 23 mbar
• 2" FF inlet connection
• 2" FF output connection
• Operating temperature - 15°C ÷ + 60°C
Properties
Cerifications:
Dimension:
2"
Thread:
F/F
Type of joint:
Threaded
