Description

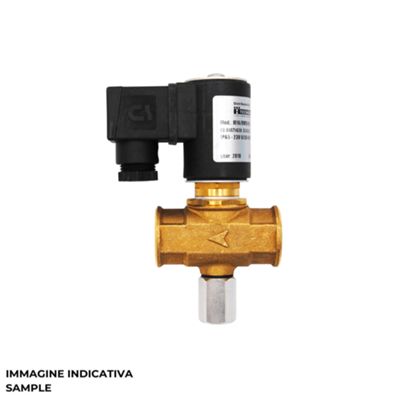

Manual reset gas solenoid valve, normally closed.
Normally closed gas shut-off solenoid valves with manual reset that can be reset only in the presence of mains voltage and only when the gas detector does not give danger signals. To be used in the presence of non-aggressive gases of the three families (dry gases)
NB. By simply powering the coil the valve does not open, you must manually act on the reset mechanism
Compliance: Regulation (EU) 2016/426 (appliances burning gaseous fuels), EMC Directive 2014/30/EU, LVD Directive 2014/35/EU, RoHS II Directive 2011/65/EU
Datasheet
• Use of non-aggressive gases of the three families (dry gases)
• Ambient temperature - 20°C ÷ + 60°C
• Electrical wiring cable gland M20 x 1.5
• Power consumption 230 V = 9 VA
• Maximum operating pressure 500 mbar
• Closing time < 1 s
• IP65 protection rating (protected against water jets pumped from any direction and completely hermetic to dust and fumes)
• Body material brass
• Mechanical resistance group 2
