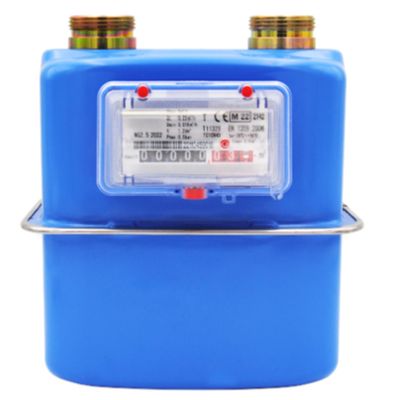

Gas meter type G4 LPG/Methane connection 1"1/4 M
Description
Volumetric gas meter with the ability to operate correctly at different flow rates and to offer precise measurement; in fact, unlike other domestic meters, this meter is able to account for even the most significant flow rates. Equipped with an integrated calibration system and valve movement system that optimizes the relationship to the gas flow rate and guarantees linearity of the error curve even at low flow rates.
Datasheet
• Measuring pressure 36 mbar
• Maximum casing pressure 1 bar
• MID class 1.5 metrological approvals
• Transition flow rate Qt 0.25 m3/h
• Maximum flow rate Qmax 6 m3/h
• Minimum flow rate Qmin 0.016 m3/h
• Operating pressure 0 ÷ 500 mbar
• Cyclic volume 1.2 l
• Service temperature - 25°C ÷ + 55°C
• 1 1/4" M input connection
• 1 1/4" M outlet connection
• Sheet metal case material
• Class G4
• Use of LPG - CH4
• Wheelbase 110 mm
Properties
Cerifications:
