Description

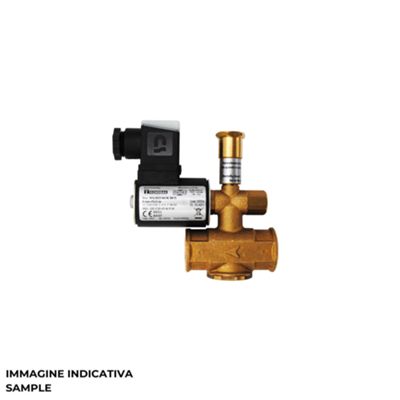

Manually reset gas solenoid valve with the possibility of using it both normally closed and normally open.
When using as " normally closed ": power the solenoid valve and press the reset knob until it engages.
When using as " normally open " : press only the reset knob until it locks in place.
Compliance: Regulation (EU) 2016/426 (appliances burning gaseous fuels), PED Directive 2014/68/EU, EMC Directive 2014/30/EU, LVD Directive 2014/35/EU, RoHS II Directive 2011/65/EU
Datasheet
• Use of non-aggressive gases of the three families (dry gases)
• Ambient temperature - 15°C ÷ + 60°C
• Electrical wiring cable gland M20 x 1.5
• Power consumption 230 V = 9 VA
• Maximum operating pressure 6 bar
• Closing time < 1 s
• IP65 protection rating (protected against jets of water pumped from any direction and completely hermetic to dust and fumes)
• Body material brass
• Mechanical resistance group 2
