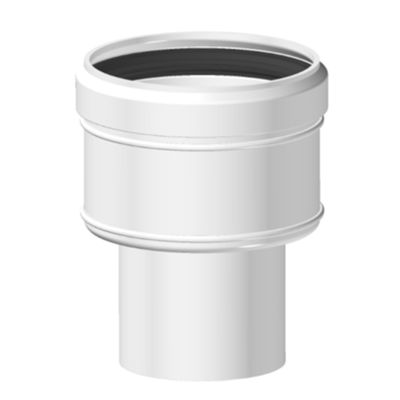

Single-part increase PP D1 (male) Ø60 mm D (female) Ø80 mm
Description
This white PPs single-wall flue pipe connection allows the union of two concentric sections with different diameters by going from a certain diameter to a larger one.
The important thing is to use the flue pipe connection only in vertical sections for condensing boilers or kitchen hood exhaust.
UNI EN 14471 - UNI 11528 - UNI 7129 STANDARDS
Datasheet
• Single wall
• Use only on vertical sections
• Finish in RAL 9010 colour
• Designation T120 H1 W 2 O00 LI EU
• Material type: self-extinguishing PPs
• Pressure-tight with EPDM gaskets compliant with EN 14241
• Field of application for condensing boilers and cooking vapour exhaust
• Corrosion resistance type 2
• Suitable fuels: methane gas
• Fire reaction class "E" (according to EN 13501-1)
Properties
Cerifications:
