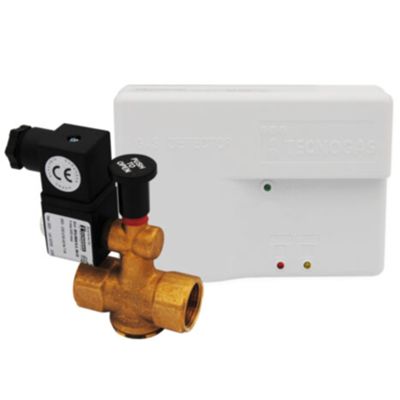

Description
The gas detector kit uses catalytic sensors, equipped with excellent sensitivity to gas and at the same time guaranteeing high selectivity to the interferents normally present in domestic environments and often causing false alarms (cooking fumes, wines, alcohol, detergents, ammonia etc.).
The detector is equipped with fault, system fault, alarm fault indicator lights and a built-in buzzer.
Linearity: the signal produced by the sensor is proportional to the gas concentration present in the environment
Selectivity: the sensor reacts only in the presence of combustible gases
Stability: the presence of an internal thermal compensator allows a stable response of the sensor at the same gas concentration with variations in temperature and humidity
Datasheet
GAS DETECTOR
• Power supply 230V
• Absorption 15mA
• Warm-up time 20 sec
• Sensor life 4 years
• Operating temperature - 5°C ÷ + 50°C
• Degree of protection IP42
• 3/4" connection
SOLENOID VALVE
• USE of non-aggressive gases of the three families (dry gases)
• Ambient temperature - 20°C ÷ + 60°C
• Electrical wiring cable gland M20 x 1.5
• Power consumption 230 V = 7/8 VA
• Maximum operating pressure 500 mbar or 6 bar
• Closing time < 1 s
• IP65 protection rating (protected against water jets pumped from any direction and completely hermetic to dust and fumes)
• Body and coil holder block materials in single-block brass
• Mechanical resistance group 2
• 3/4" FF connection. Compliance with EMC Directive 2014/30/EU, LVD Directive 2014/35/EU, RoHS II Directive 2011/65/EU
