Description

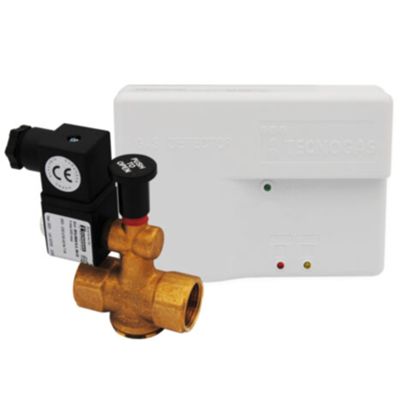

the gas detector kit that uses catalytic sensors, equipped with excellent sensitivity to gas and at the same time guarantees high selectivity to the interferents normally present in domestic environments and often the cause of false alarms (cooking fumes, wines, alcohol, detergents, ammonia etc.).
Its high technical performance and the compliance of the LINEASICURA line with the standard guarantee the reliability of the product.
The lineasicura models are equipped with fault, system fault, alarm fault light signals and a built-in acoustic warning device.
Linearity: the signal produced by the sensor is proportional to the gas concentration present in the environment
Selectivity: the sensor reacts only in the presence of combustible gases
Stability: the presence of an internal thermal compensator allows a stable sensor response to the same gas concentration with variations in temperature and humidity
Datasheet
• Power supply 230V
• Absorption 15mA
• Warm-up time 20 sec
• Alarm relay NC/NO
• Sensor life 4 years
• Operating temperature - 5°C ÷ + 50°C
• Protection degree IP42
• Connections 3/4"
• Dimensions (LxHxD) 92 x 130 x 32 mm
