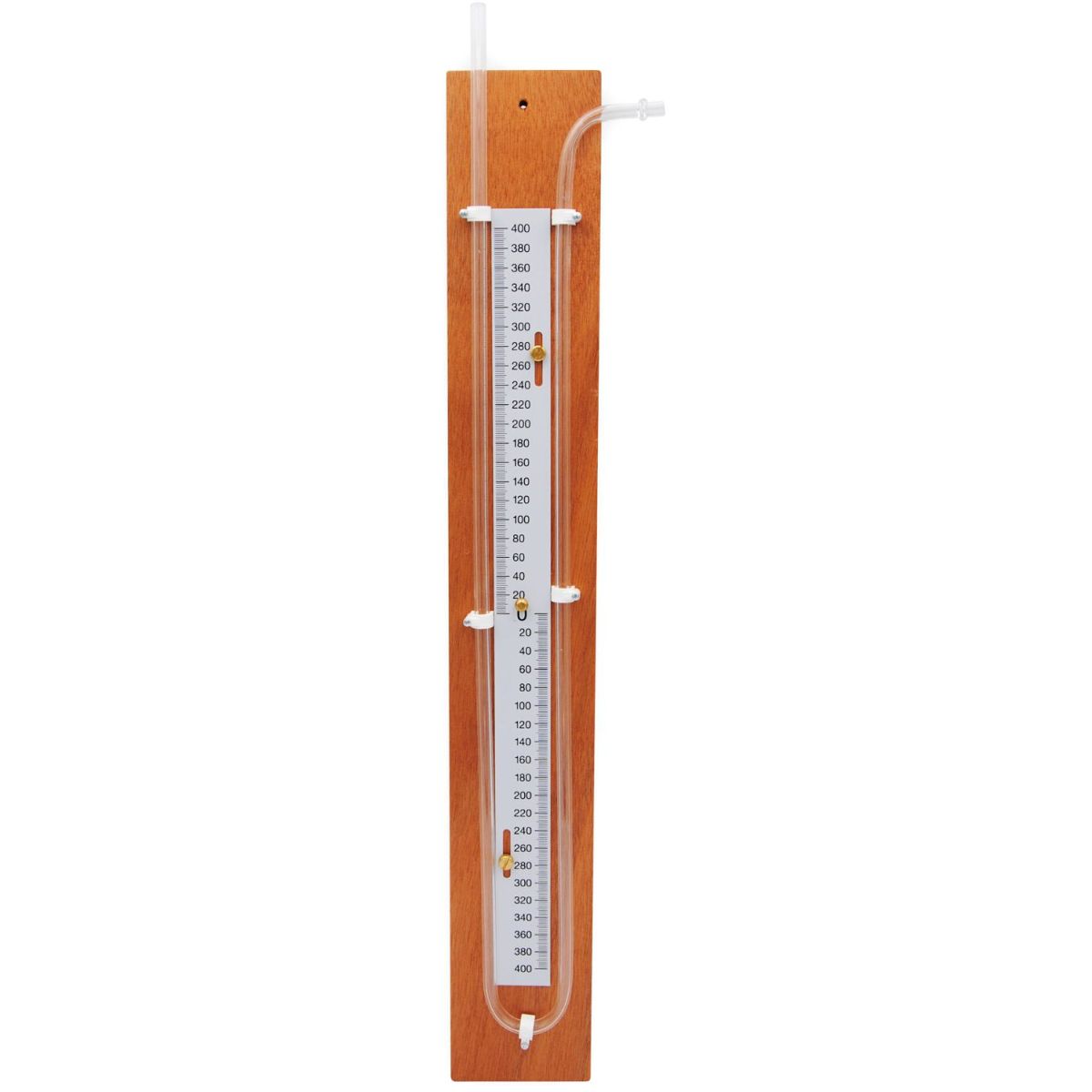

"U" manometer for static pressure measurement
Suitable for pipes, containers and pressure loss control
Adjustable and maintenance-free








Description
The Tecnogas "U" manometer, using the principle of the weight of water, allows you to precisely determine the pressure or depression exerted in the system. This instrument does not require maintenance and has a regulation system to compensate for the liquid level and atmospheric pressure variations.
Datasheet
• Measuring scale 0 ÷ 600 mm
• Tube material Transparent methacrylate Ø 8 mm
• Support material: lacquered marine wood
• Water measuring liquid
• Accuracy ± 0.5 mm
• Manual setting via central screw
• Connection Extruded silicone tube
• Dimensions 8 × 3 × 81 cm
• The product is ideal for systems in the hydraulic, pneumatic and industrial sectors
Package Contents
• Tecnogas "U" pressure gauge
• Silicone tube
• User manual
