Description

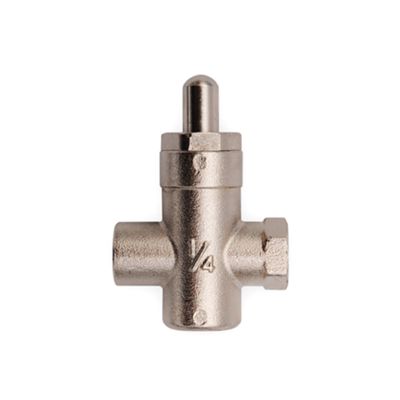

Tap that allows the temporary connection of a pressure gauge to measure the pressure at a specific point of the system, without interrupting the operation of the system or emptying the circuit. The button allows you to open and close the passage of the fluid in a simple and temporary way, ensuring safety and practicality
Datasheet
• Nickel plating surface treatment finish
• Body materials in CW617N, spring in steel and O-ring in NBR
• Permitted fluids: gases, vapours and non-hazardous liquids (group 2)
• Nominal pressure 4 bar
• Max temperature 70°C
• Thread according to EN ISO 228-1
• Reference standard DIR90/396/CE
