Description

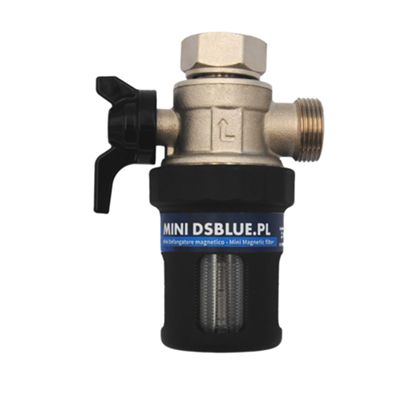

The MINI DSBLUE.PL mud separator, thanks to its small size, can be installed in restricted spaces (only in vertical position).
The dirt separator is an excellent solution to deal with problems due to impurities in the water, such as rust and sand that are created by corrosion and scale during the normal operation of a heating system. The filter guarantees continuous protection because it prevents the circulation of microparticles in the system, preserving the most sensitive components such as the circulator and heat exchanger. For the filter to function correctly, it must be installed on the return circuit, at the boiler inlet .
To be used only to treat water in circuits with a pH between 6.5 and 9.5
Datasheet
• Chemical compatibility water / water and glycol
• Max. inlet pressure 3 bar
• Working temperature 0 ÷ 90°C
• Filtration degree 800 µm
• Threaded connections G 3/4" M/F UNI-EN ISO 228
• kv (Flow rate with Dp 1 bar) 4.45 m3/h
• Magnetic field strength 7000 Gauss
• Chromed brass body
• Chromed brass fittings FG 3/4" / 3/4" M
• Chrome plated brass ball valve
• AISI 304 stainless steel mesh filter element
• Ruthenium magnet
• EPDM O-rings
