Description

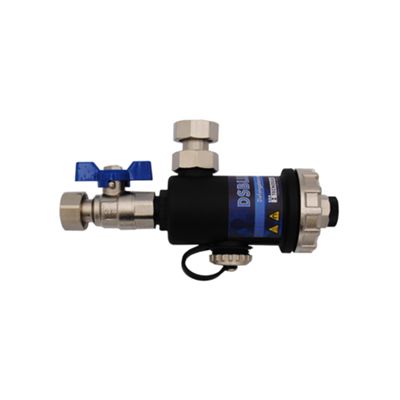

The compact sludge separator is designed to be installed on heating systems in very small spaces (it can be installed both vertically and horizontally) with the aim of eliminating impurities that circulate in the pipes and that are potentially dangerous for the systems themselves. This product is able to remove both muddy or sandy residues through a stainless steel filter mesh, and the smallest ferrous residues thanks to a powerful magnet inserted inside it; the impurities thus separated can then be eliminated by opening the filter drain and simultaneously excluding the magnet.
Datasheet
• Chemical compatibility water / water and glycol
• Max. inlet pressure 3 bar
• Working temperature 0 ÷ 90°C
• Filtration degree 800 µm
• Threaded connections G 3/4" FF UNI-EN-ISO 228
• kv (Flow rate with Dp 1 bar) 5.4 m3/h
• Magnetic field strength 11000 Gauss
• Polypropylene body + 30% FV
• Fittings and caps in nickel-plated brass CW 617N UNI EN 12165
• AISI 304 stainless steel mesh filter element
• Neodymium magnet
