Description

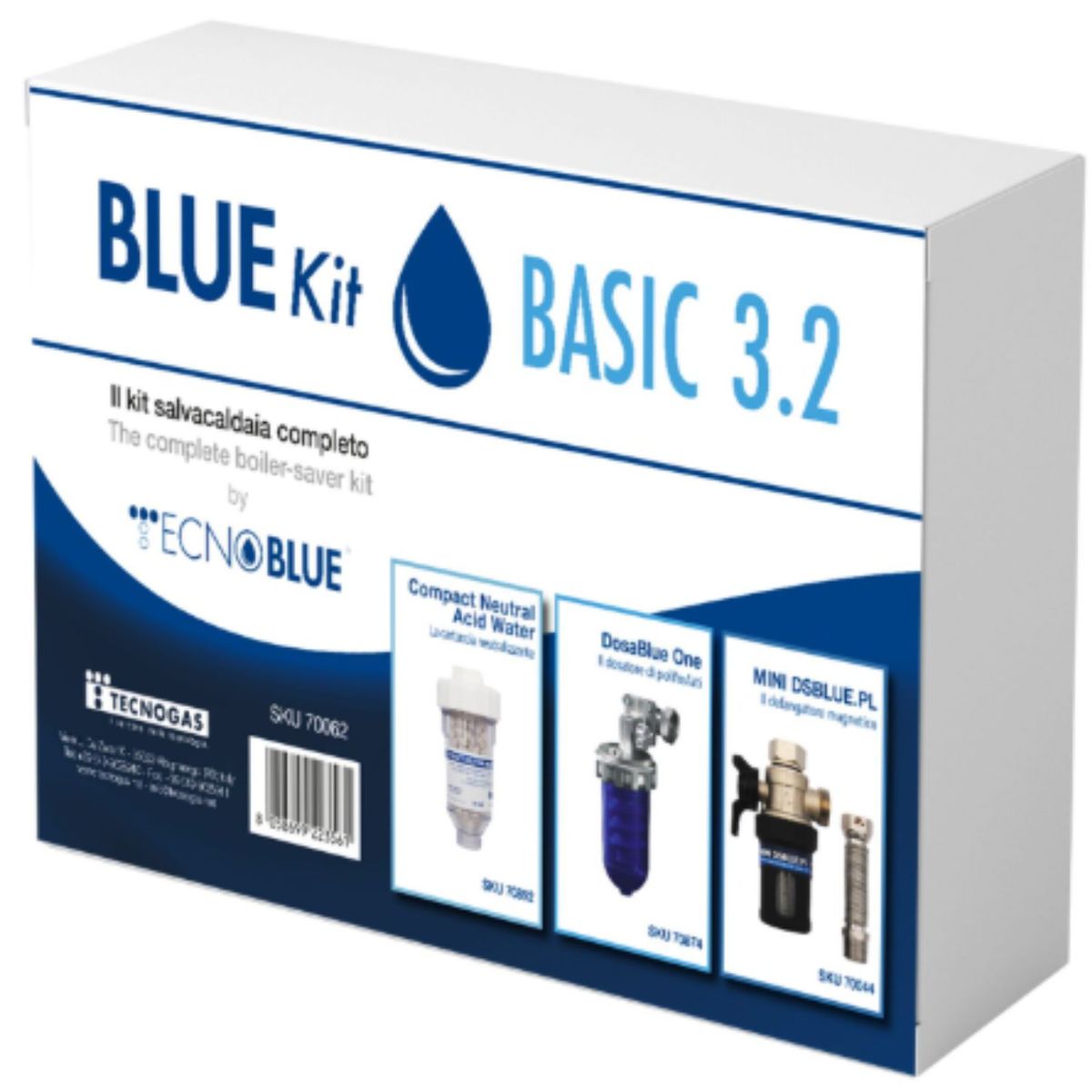

Boiler protection kit consisting of Mini DSBLUE.PL magnetic dirt separator, Dosablue ONE polyphosphate dispenser and Compact Neutral Acid Water neutralising cartridge: the perfect kit to protect the boiler and prevent the formation of limescale and corrosion in the pipes
The doser is a mandatory device, introduced by the Ministerial Decree of 26 June 2015 (Annex 1, chapter 2.3.5), which provides for chemical treatment for each type of system.
It must be installed in new installations or replacements at the boiler inlet, on the cold water pipe, and performs an anti-scale and anti-corrosion function.
Datasheet
DOSABLUE ONE dispenser data
• 90° IN/OUT 1/2" hooks
• Max flow rate 1.5 m3/h
• Max pressure 3.5 bar
• Operating temperature 0°C - 45°C
• Charging autonomy 12 - 15 m3
• Pressure drop 0.2 bar
Data of MINI DSBLUE.PL magnetic mud remover
• Chemical compatibility water / water and glycol
• Max. inlet pressure 3 bar
• Working temperature 0 ÷ 90°C
• Filtration degree 800 µm
• Threaded connections FG 3/4" - 3/4" M UNI-EN ISO 228
• Max. flow 4.45 m3/h
• Magnetic field intensity 7000 Gauss
