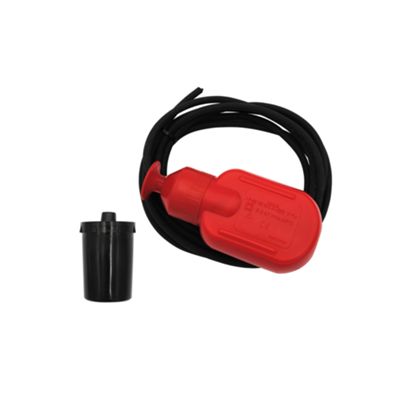

Float with microswitch electrical contacts / switch for clear water
Description
Float level regulator insensitive to humidity and condensation, designed to activate connected equipment (pumps, sirens, etc.) when a set level is reached.
Datasheet
• Operating voltage 230 Vac 50 Hz
• Max operating voltage 10 (4) A 250V ac
• Max pressure 10 bar
• SPDT electrical contact com + NC + N.0
• Working angle 30°
• IP68 protection rating (protected against prolonged immersion in water and completely sealed against dust and fumes)
• Water temperature 45°C
• Materials: external body in one-piece die-blown polyethylene, internal chamber in one-piece die-blown for the microswitch seat, stainless metal ball and PVC cable
• Dimensions 172 x 80 x 56 mm (HxWxD)
• Mercury free
Properties
Cerifications:
