Description

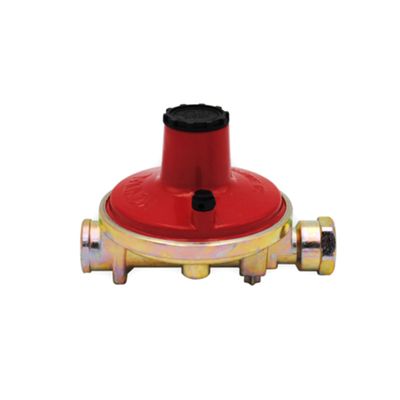

Low pressure regulator, equipped with a built-in relief safety valve, designed to make the gas pressure coming out of a tank suitable for the downstream user.
Datasheet
• Types of LPG gas
• Flow rate 10 kg/h
• Production calibration 30 mbar
• Service temperature - 20°C ÷ + 50°C
• Inlet pressure 0.5 ÷ 11 bar
• Output pressure 20 ÷ 50 mbar
• IN 1/2" F - OUT 1/2" F connection
• Body and cover in zinc alloy (ZAMA)
• Body protected by galvanic treatment (yellow zinc plating)
• Lid protected by epoxy powder coating
• Compliant with EN 549 standard
• Complies with EN 16129
