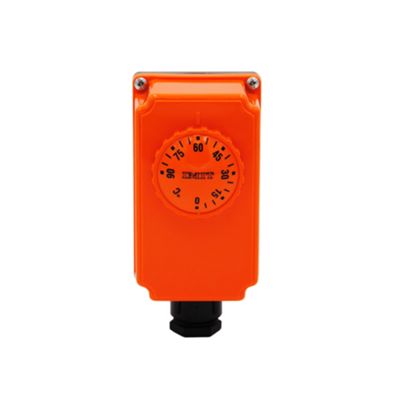

Boxed immersion thermostat with liquid expansion L 100 mm
Description
Boxed immersion thermostat with liquid expansion, unipolar, with switching contact and complete with watertight protective sheath and with knob regulation.
INAIL APPROVED
Datasheet
• Contacts interrupted due to temperature increase in exchange
• Contact rating 10 (2.5) A / 250 Vac
• Maximum head temperature 80°C
• Maximum bulb temperature 125°C
• Adjustment range 0°C ÷ 90°C
• Degree of protection IP40 (not protected against the ingress of liquids, protected only against the ingress of solid objects larger than 1 mm)
• Thermal gradient 1°K/min
• Sheath length 100 mm
• G 1/2" sheath connection
Properties
Cerifications:
