Tecnogas R05341 - WATER-SIMPLE electronic regulation control unit

SKU: TGS00000R05341

Brand: Tecnogas

Electronic control units for fireplaces and hydraulic modules

€110.80pcs

€116.63pcs

percent 5%

You save €5.83pcs Promotion active until 27 September

⏰ Order now and receive it: between and

Based on the shipping address, VAT may change during the purchase process. For more information, click here.

verified 2 years warranty sync Easy return within 14 days shopping_cart Buy with tax benefits

Description

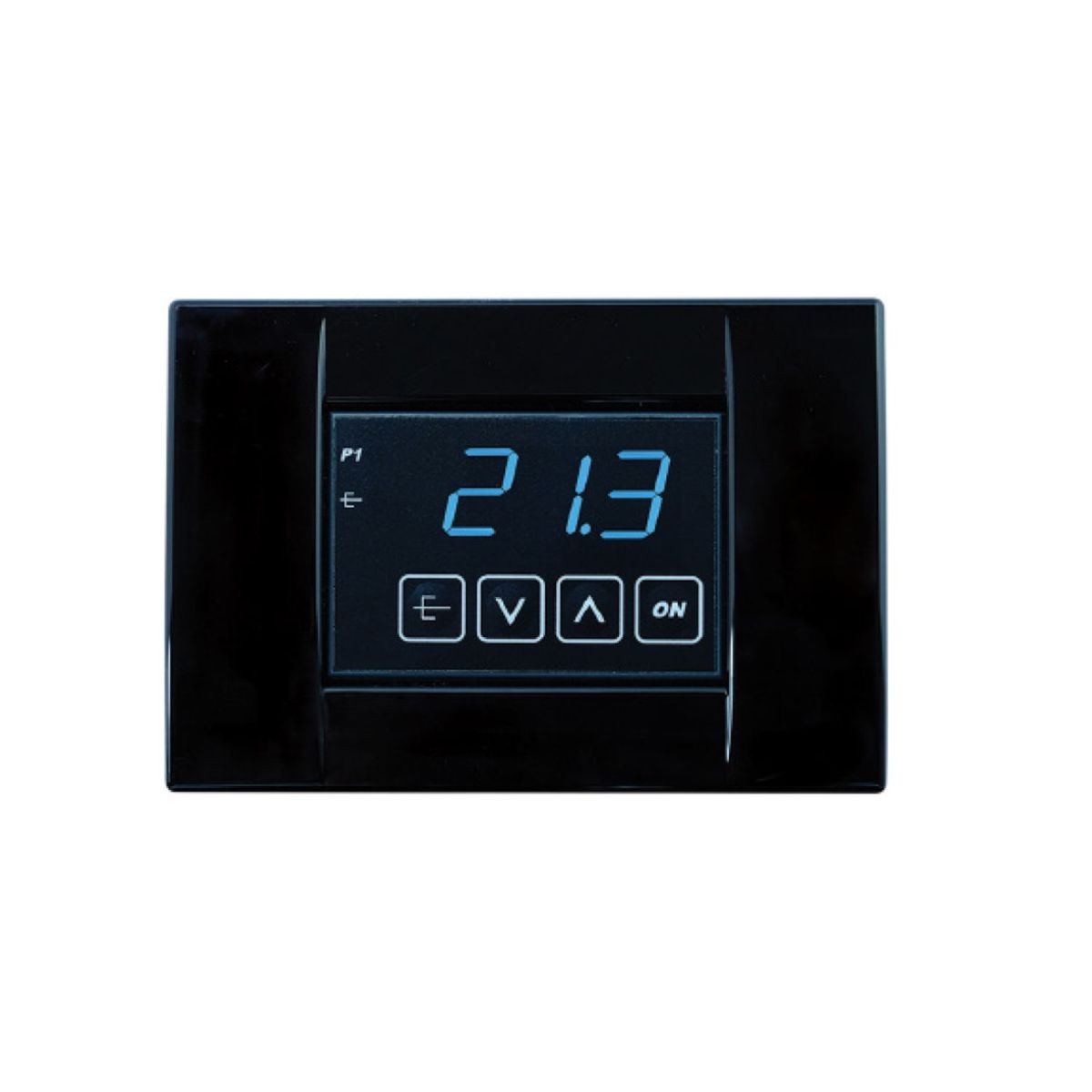

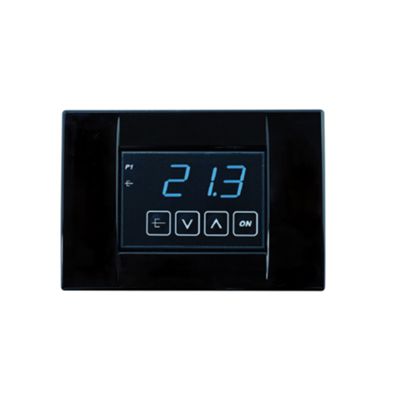

WATER SIMPLE is a built-in DIN503 electronic regulator for fireplaces, designed to manage the circulator of a water heating system thanks to the microprocessor logic; furthermore, it is possible to control the manual activation of the "grill" motor.

Complete with immersion probe, well and black aesthetic plate.

Datasheet

• Power supply 230 Vac / 50 Hz

• Max power consumption 3.2 W

• Contact rating 3 (1) A 250 Vac

• Usable probe NTC 10 K

• Temperature display 3.0°C ÷ 99.9°C

• Resolution 0.1°C

• Operating ambient temperature 0°C ÷ 50°C

• Insulation class (with device installed) II

• Degree of protection (with device installed) IP20 (not protected against the ingress of liquids, but protected against the ingress of solid objects larger than 12 mm)

• Management of circulator system and grill rotisserie output
