Tecnosystemi 11154204 - ultra flexible thermal tube diam. 204 - 10 m
Description

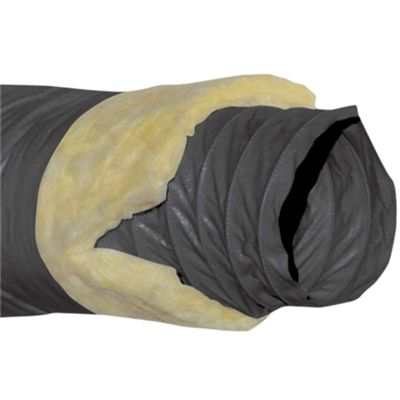

Flexible hose designed for ventilation and air conditioning applications made of a double wall of black polyethylene, it is reinforced with a spiral of harmonic steel wire incorporated between the layers, giving the hose exceptional flexibility and resistance.
Thermal insulation is made of glass wool with a thickness of 2.5 cm and a density of 16 kg/m³, covered with a polyethylene sheet that acts as a vapor barrier, ensuring effective thermal and acoustic insulation.
Thanks to its structure, the tube is easy to install on circular and oval connectors, making it ideal for ducted air conditioning systems.
Datasheet
• Internal diameter 204 mm
• Length 10 m
• Inner/outer duct material: black polyethylene, thickness 100 μm
• Reinforcement spiral in harmonic steel wire incorporated between the layers
• Thermal insulation glass wool thickness 25 mm, density 16 kg/m³
• External coating of polyethylene sheet as a vapour barrier
• Operating temperature from -20°C to +70°C
• Minimum recommended bending radius 1D
