Description

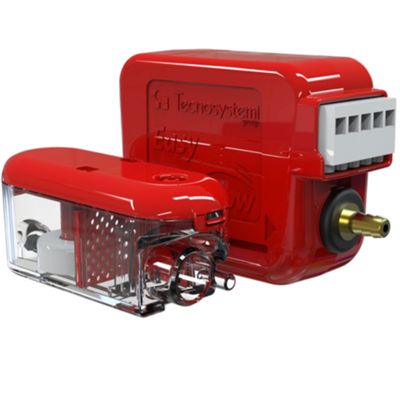

The condensate drain pump is used to remove condensation water that can form when the humidity in the air cools and turns into water in air conditioning or conditioning systems.
Inside the kit you will find:
- Floating anchor plate
- Pump
- Tube L = 1 m
- Vent tube
- Double-sided adhesive tape
- Adapter sleeve
- Removable electrical connector
Datasheet
• Max. suction 2 m vertical between floating body and pump block
• Power supply 230 V - 50 Hz
• Alarm contact C-NO/NC 8A
• Degree of protection IP20
• Lid with sealing gasket
• Tube size Ø 4 x 6 mm (1 m tube supplied)
• Pump dimensions L 97 x H 55 x D 30 mm
• Floating body dimensions L 91 - H 39 - D 34 mm
• For air conditioners up to 20 kW
• Max delivery 12 m vertical
• Power consumption 19 W
• Max. noise level 26 [dB(A)]
Kit contents:
• Floating anchor plate
• Pump
• Tube L = 1 m
• Vent pipe
• Double-sided adhesives
• Adapter sleeve
• Removable electrical connector
