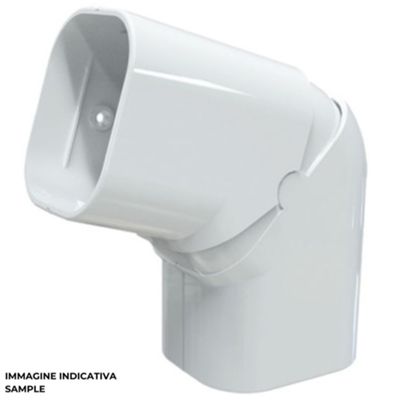

Tecnosystemi N11121111 - EXCELLENS CPS 60-EXC articulated flat curve
Description
The articulated flat curve, model "CPS 60-EXC" of the New Line range, is designed to facilitate the installation of channel layouts along inclined sections. Thanks to its joint, it allows for an adjustment of the angle from 90° to 135°, adapting to different installation needs. Made of rigid, eco-friendly PVC, shockproof and resistant to UVA rays, it guarantees durability and protection against atmospheric agents.
The design features a snap-fit bottom and lid, with a recess for the channel to rest on, ensuring easy and safe assembly, while the external curvature facilitates the bending of pipes inside the channel, while the external hole-covering crown offers a clean aesthetic appearance.
The product can be painted, allowing aesthetic adaptation to different environments, furthermore the package includes galvanized screws for fixing.
Datasheet
• Model CPS 60-EXC
• New Line Line
• Eco-friendly rigid PVC material, shockproof and resistant to UVA rays
• White color
• Adjustable angle from 90° to 135°
• Dimensions 6,6x5,6x11 cm
• Interlocking bottom and lid
• Support stop for channel
• External curvature to facilitate the bending of the pipes
• External hole cover crown
• Paintable
• Operating temperature -20°C / +60°C
Package Contents:
• "CPS 60-EXC" 56x110 mm articulated flat curve
• Zinc plated screws for fixing
