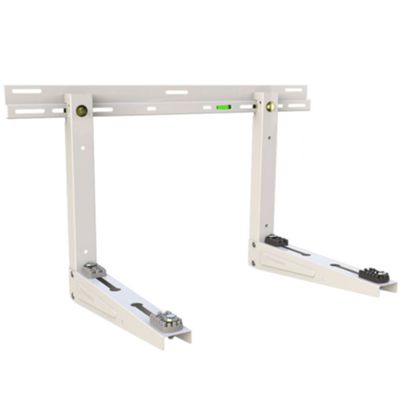

Tecnosystemi SCD500377 - CLASSIC TSMC EVO air conditioner bracket
Description
The bracket is made of electro-galvanized sheet metal and painted with RAL 9002 polyester powder which is highly resistant to atmospheric agents.
The adjustable and articulated feet on the back absorb the vibrations of the machine and do not transmit them to the wall, making the system silent and it is possible to directly attach the lift.
Available in a single package including: anti-vibration mounts, adjustable feet, screws with hex key for assembly and fixing plugs.
It has a load capacity of up to 180kg.
Datasheet
• Made of electro-galvanized sheet metal
• Adjustable tilt from 14° to 27°
• Outdoor polyester paint
• “NO-SHOCK“ sliding anti-vibration devices supplied
• Fixing bolts with chain
• Not telescopic
• Dimensions: A (350-750), B (140-370), C (500) mm, D (14°-27°)
