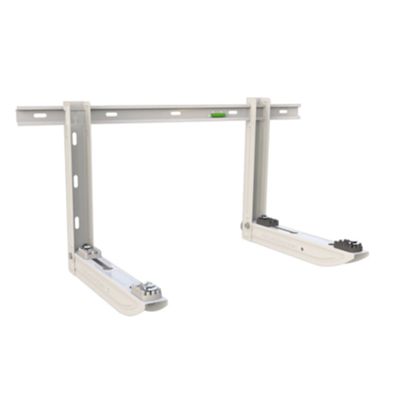

Tecnosystemi SCD500391 - GALILEO SGL EVO air conditioner bracket
Description
It is made of electro-galvanized sheet metal and painted with RAL 9002 polyester powder resistant to atmospheric agents, the wall fixing bar equipped with teeth allows the anchoring and adjustment of the distance between the shelf support arms, without them being able to slide during the installation phase.
It reaches a load capacity of 140kg.
The supports are designed for the assembly of the condensation collection tray, furthermore the silence is obtained by special anti-vibration mounts on the shelves and adjustable articulated feet placed on the back of the arm which eliminate all the vibrations transmitted by the machine.
The bracket is tested and certified with a static weight equal to 1.5 times the declared one, available in a single package complete with adjustable and articulated rear feet, anti-vibration, screws, wall fixing plugs.
Datasheet
• Made of electro-galvanized sheet metal
• With included bubble level
• Polyester exterior coating RAL 9002
• Serrated wall mounting bar
• Ready for condensate collection tray
• Sliding anti-vibration pads
• Adjustable and swivel rear feet
• Dimensions A (440-745), B (180-385), C (400), D (475) mm
Package contents
• Bracket
• Adjustable and swivel rear feet
• "NO-SHOCK" anti-vibration pads
• Wall mounting anchors
• Screws
