Description

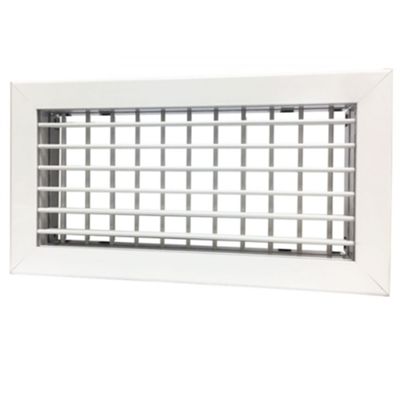

The vents are applied to all air conditioning, heating and air recirculation systems, which require the regulation of the air flow, extension and direction of the jet. The fastening by means of invisible clips allows for an aesthetically valid application. The vents, consisting of a frame and a double row of horizontal and vertical fins individually adjustable.
Datasheet
• Made of white painted aluminum RAL 9016
• Fixing by clips
• Horizontal and vertical fins individually adjustable
• Prepared for mounting the calibration damper
• For wall installation
• Installation height 2.5 - 3.5 m
• External frame dimensions 33.2x12.2 cm
• Installation hole dimensions 30x10 cm
• Rear neck dimensions 29x14 cm
• Rear neck depth 4 cm
• Min. flow rate 280 m³/h
• Max. flow rate [m³/h]550
• Min. noise db[A]26
• Max noise db[A]45
• Throw t min Vt=0.25 m/s 3.8 m
• Throw t max Vt=0.25 m/s 7.5 m
• Head dpt min 5 Pa
• Head dpt max 20 Pa
