Description

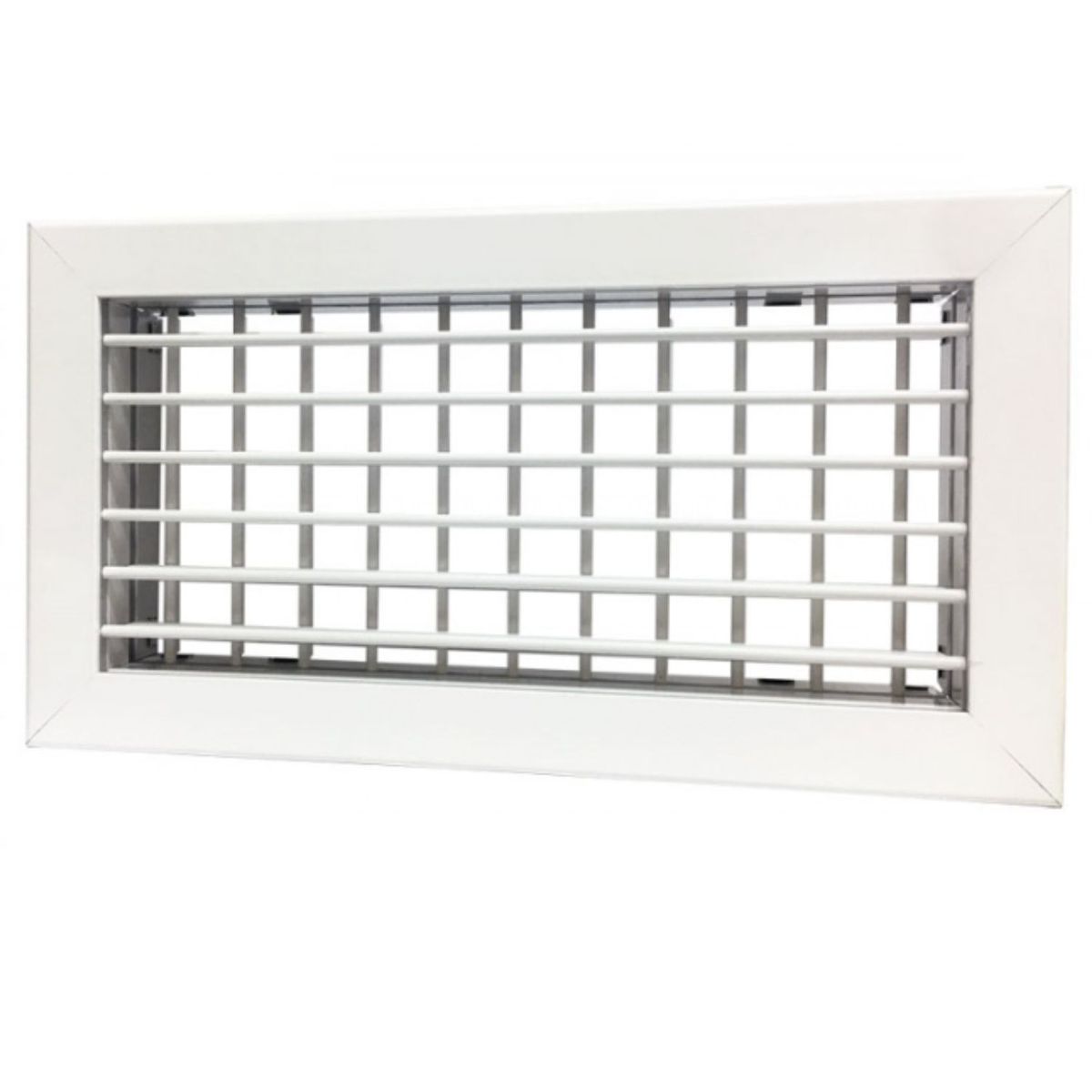

The vents are applied to all air conditioning, heating and air recirculation systems, which require the regulation of the air flow, extension and direction of the jet. The fastening by means of invisible clips allows for an aesthetically valid application. The vents, consisting of a frame and a double row of horizontal and vertical fins individually adjustable.
Datasheet
• Made of white painted aluminium RAL 9016
• Fixing by means of clips
• Individually adjustable horizontal and vertical fins
• Prepared for mounting the calibration damper
• For wall installation
• Installation height 2.5 - 3.5 m
• External frame dimensions 53,2 x 18,2 cm
• Installation hole dimensions 49 x 14 cm
• Rear neck dimensions 50 x 15 cm
• Rear neck depth 4 cm
