Description

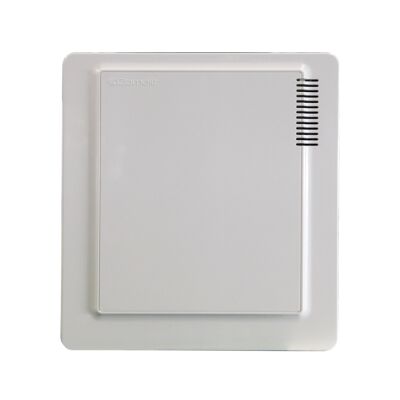

Vedo series alarm control unit in flame-retardant ABS wall-mounted container with 1.5A switching power supply.
Equipped with 8 zones on board, expandable to 34 mixed wired/radio zones, 1 24 hour zone, double function for a maximum of 68 zones, integrated PSTN telephone communicator, RS485 serial bus for connecting additional modules, 1 relay output and 2 open collector outputs.
It manages up to 8 areas with 8 different arming programs (scenarios) and daily timers, 8 IN/OUT expansions, 8 proximity readers, 8 Safe Key keyboards, 2 Safe Touch, 2 Planux/Mini Touch Manager and 2 radio receivers.
Self-resetting fuse for the siren power output, RS485 serial bus and sensor power supply. Equipped with USB port for connection to the PC with the Safe Manager configuration software.
All zones can be configured as NC, NO, single, double and triple balanced and as double zone.
Dimensions (W x H x D) 260 x 280 x 80 mm.
Datasheet
Technical features:
- Type : Anti-theft control unit
- Protection Zones : 34
- Expandability : Yes
- Programming : Yes
- Applications : Residential and commercial
- Functions : Remote management and home automation integration
