Description

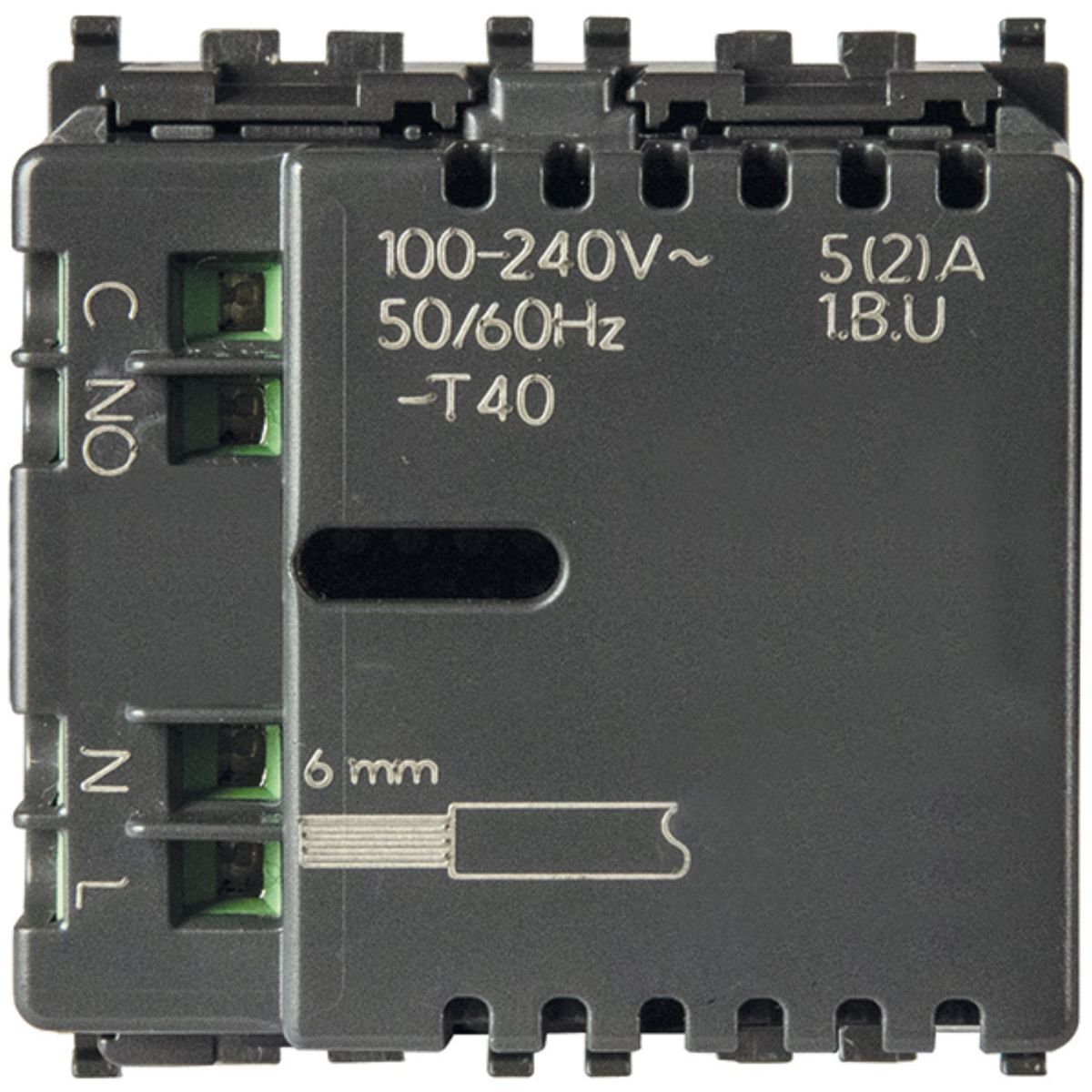

Wheel thermostat with relay output 5(2) A 240 V~, with heating and air conditioning in ON/OFF mode, the temperature control device is class I (contribution 1%), the backlighting is white LED with intensity regulation, the power supply is 100-240 V 50/60 Hz, 2 modules and grey in colour.
To be completed with Eikon, Arké and Plana plates, for Idea instead it can be installed with dedicated support 16723.
The thermostat is equipped with a front wheel for setting the temperature setpoint (from 4°C to 40°C) and a central white LED display that shows the measured temperature, showing the setpoint only when the wheel is turned.
The ring around the display, backlit, shows the thermostat status. The device is equipped with 4 front buttons for management and settings.
Datasheet
• Easy to program
• Suitable for all heating or cooling systems
• Maximum simplicity thanks to the large knob
• Quick keys allow for fast interaction
