Description

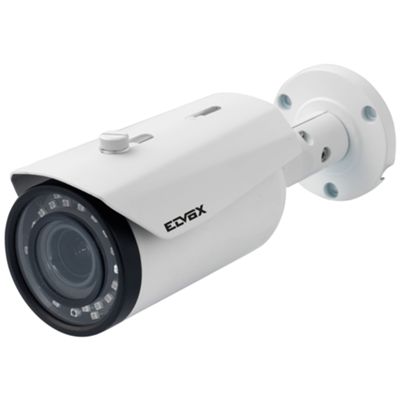

Bullet camera designed for high definition analog video surveillance systems, equipped with a 1/3" CMOS sensor with 2 Mpx resolution, offers clear images in Full HD 1080p format.
The 2.8-12mm varifocal lens allows flexible adjustment of viewing angle, adapting to different monitoring needs.
The Day&Night function, supported by a mechanical IR filter and an infrared illuminator with a range of up to 30 m, ensures effective surveillance even in low light or total darkness.
The camera is weatherproof thanks to the IP66 protection rating, making it suitable for both indoor and outdoor installations.
Compatibility with CVBS, AHD, TVI and CVI formats, selectable via dip switches, offers versatility in integration with different recording systems.
Complete with bracket with protected cable passage, it facilitates a tidy and safe installation.
Datasheet
• 1/3" 2 Mpx CMOS sensor
• Full HD 1080p resolution (1920×1080)
• Varifocal lens 2.8–12 mm
• IR illuminator range up to 30m
• Smart-IR functions, mechanical IR filter
• Supported video formats CVBS, AHD, TVI, CVI (selectable via dip switch)
• IP66 protection rating
• Power supply 12 V DC ±10%, 350 mA
• Dimensions 193 mm (W) × 90 mm (H) × 69 mm (Ø)
• Wall or ceiling mounting, bracket included with protected cable passage
• White color
